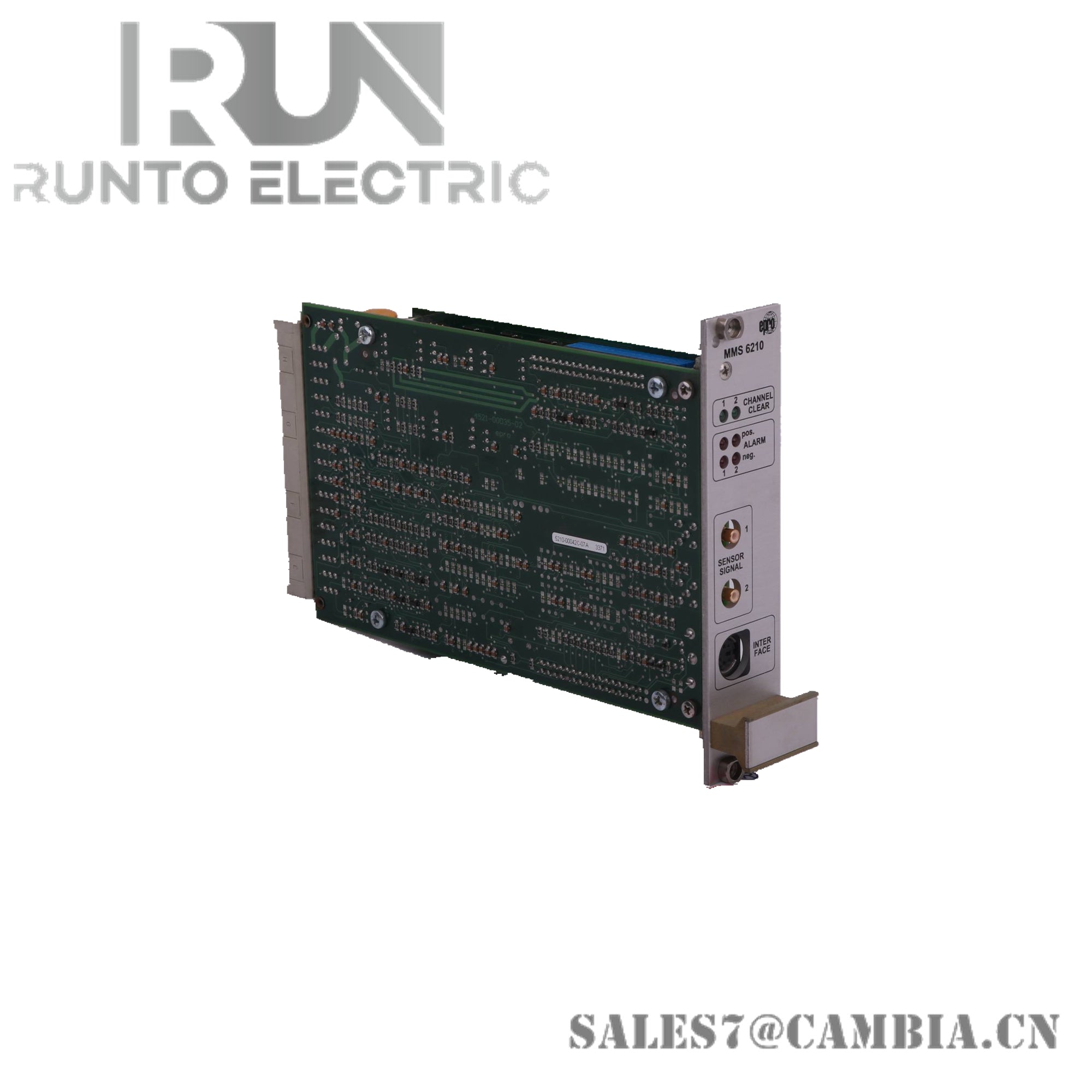

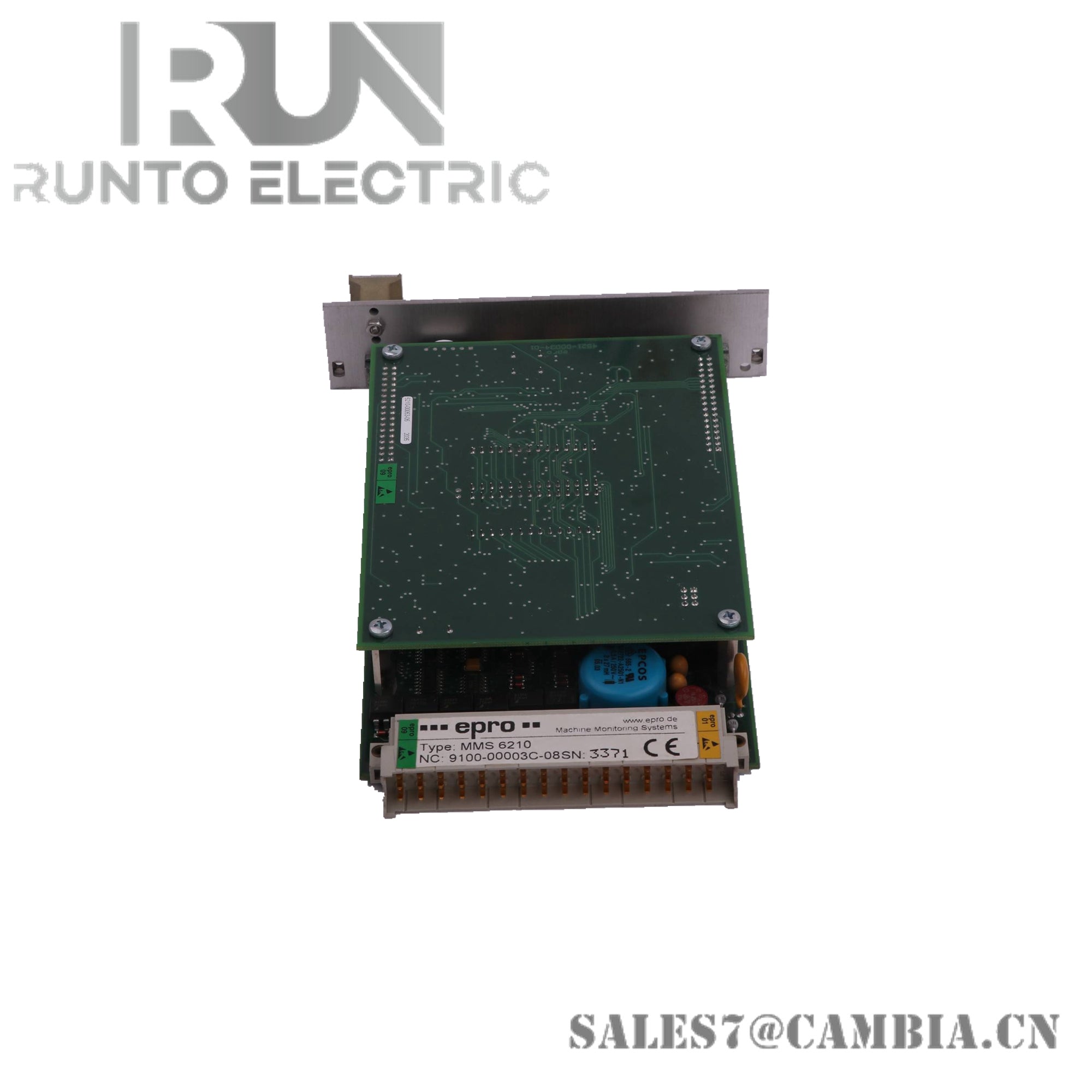

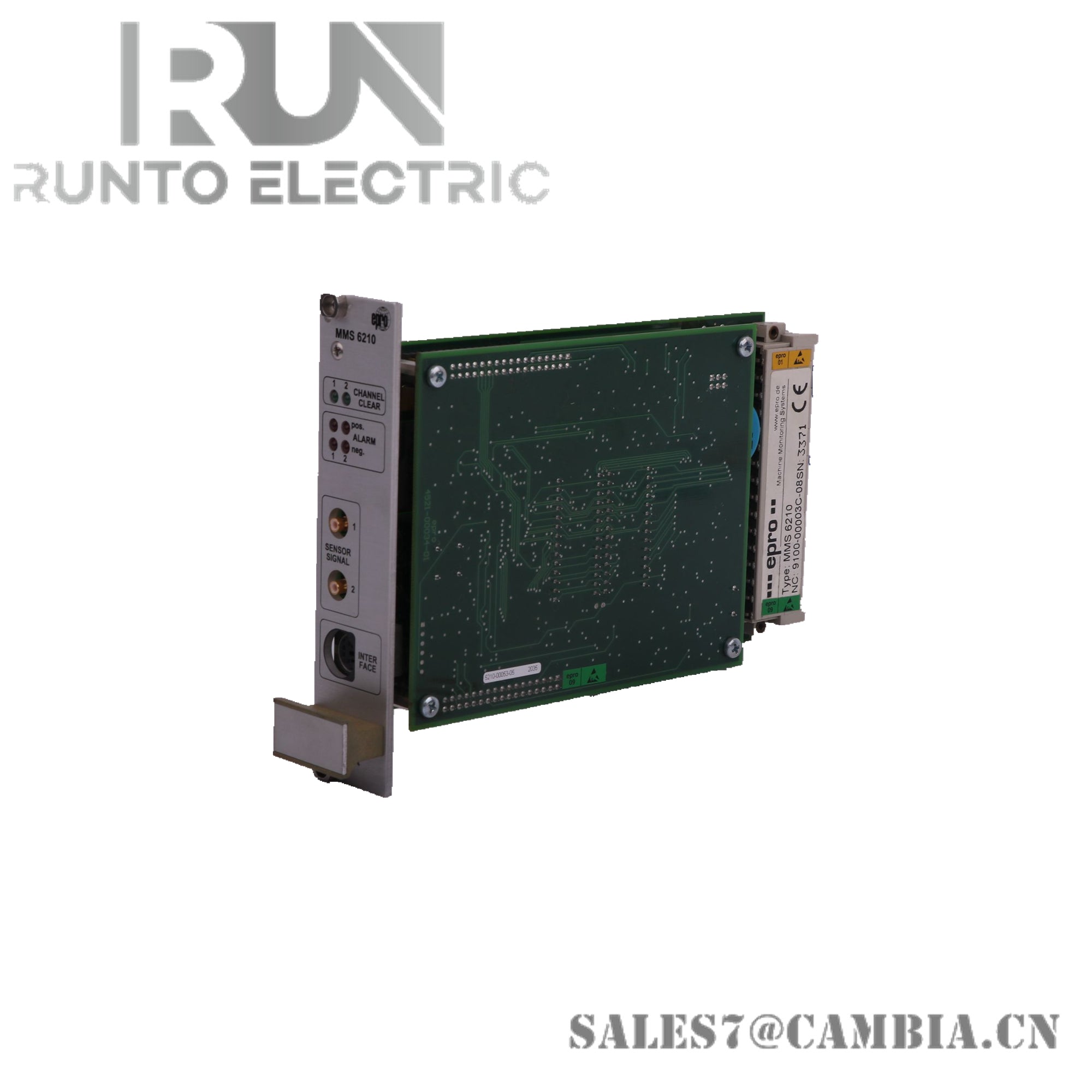

EPRO MMS 6210 Dual Channel Shaft Displacement Monitor

Description

The MMS 6210 is a precision measurement device designed for monitoring shaft movements including axial positions, rectangular or conical discs, differential and thermal expansions, and radial shaft positions and bending. It utilizes outputs from eddy current type displacement transducers for accurate readings.

Features

• Dual Channel: Monitors two measurement channels simultaneously.
• High Accuracy: Provides measurements with an accuracy of ±0.02 mm.
• Wide Input Range: Supports a measurement range of ±100 mm.
• High Resolution: Offers a resolution of 0.01 mm.
• Fast Sampling Rate: Operates at a sampling rate of 1000 Hz.
• Environmental Tolerance: Functions effectively within a temperature range of -20 to 60°C and a humidity range of 0 to 95% RH.

Specifications

• Power Supply: Redundant supply input via two decoupled supply inputs (max. 6 W, max. 250 mA at 24 V).
• System Design: Capable of operating up to 31 modules/62 channels on one RS 485 bus.
• Environmental Conditions:
  • Operating Temperature Range: 0 to +65°C
  • Storage and Transport Temperature Range: -30 to +85°C
  • Relative Humidity: 5 to 95%, non-condensing
• Protection Class:
  • Module: IP 00
  • Front Plate: IP21
• Dimensions:
  • Width: 30.0 mm
  • Height: 128.4 mm
  • Length: 160.0 mm
  • Net Weight: Approx. 320 g
