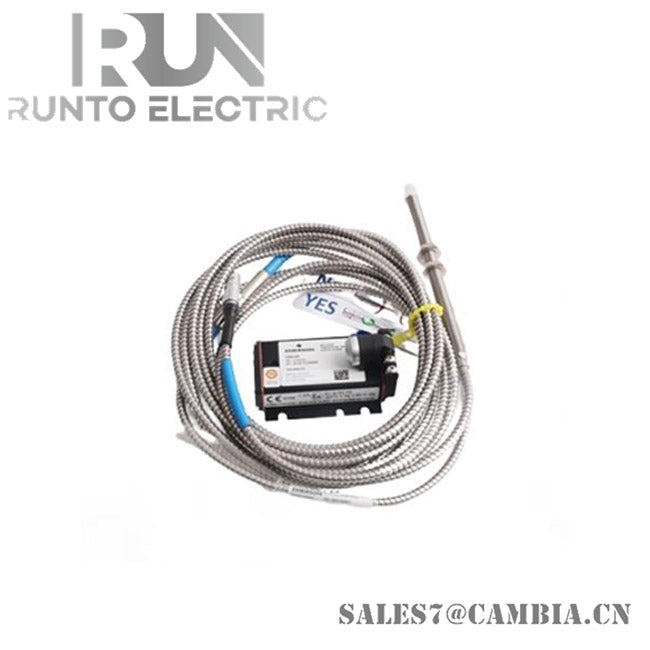

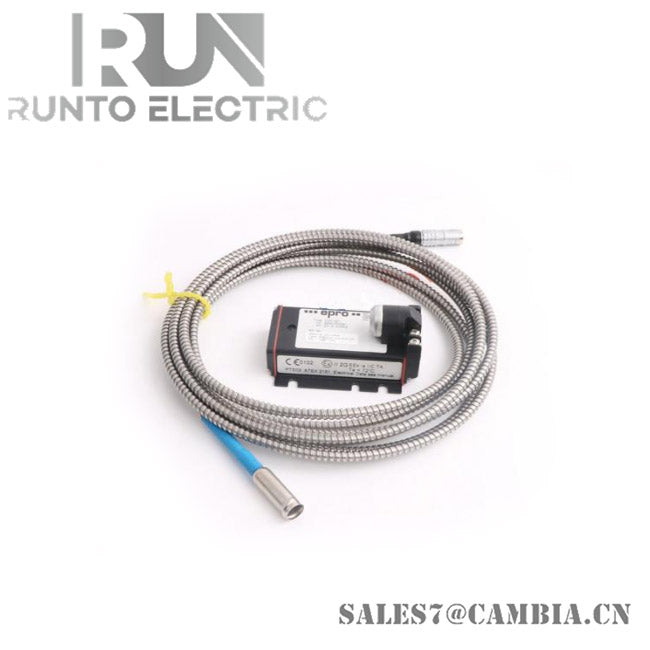

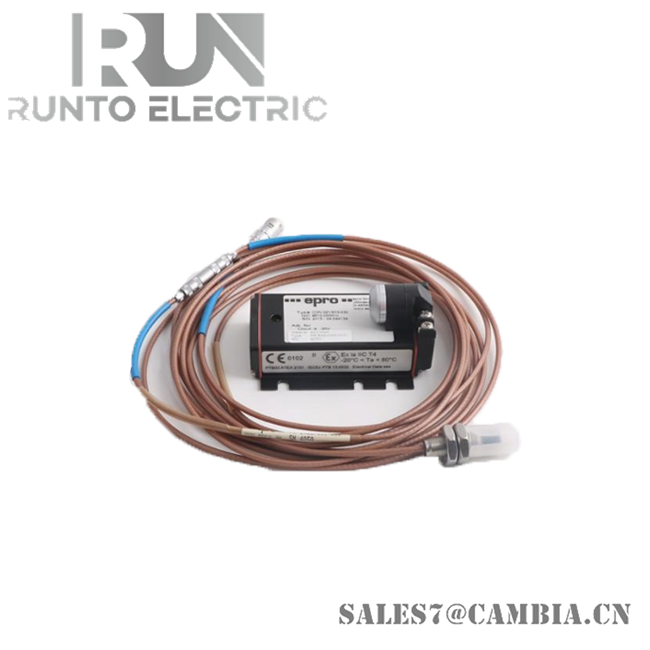

EPRO CON041+PR6423/10R-131 Eddy Current Sensor

Product Overview

• Product Type: Eddy Current Sensor
• Manufacturer: Emerson
• Product ID: CON041+PR6423/10R-131
• Origin: Germany

Specifications

• Measurement Range: 0 to 2 mm
• Initial Air Gap: 0.5 mm
• Incremental Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ± 5% at 0 to 45°C
• Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil) at 0 to 45°C
• Operating Temperature: Sensor (including 1m cable): -35 to +200°C
• Protection Class: IP66
• Materials:
  • Sensor Tip: PEEK
  • Case: Stainless Steel
  • Cable: PTFE
  • Connector: Brass, nickel-plated
• Weight: Approx. 100 grams

Features

• Non-contact Measurement: This sensor provides precise and reliable vibration monitoring without physical contact, which reduces wear on both the sensor and the machinery.
• High Sensitivity: Designed for critical machinery applications, this sensor ensures accurate detection of small vibrations, making it suitable for sensitive monitoring tasks.
• Wide Frequency Range: Capable of operating across a frequency range of 0 to 20,000 Hz, it is ideal for various industrial applications involving dynamic equipment.
• Rugged Design: Engineered to endure harsh industrial conditions, the robust construction of the sensor allows for long-term reliability and performance.
• Compliance: This sensor meets international certifications, including CE, ATEX, IEC-Ex, and CSA, ensuring safety and reliability in hazardous environments.
