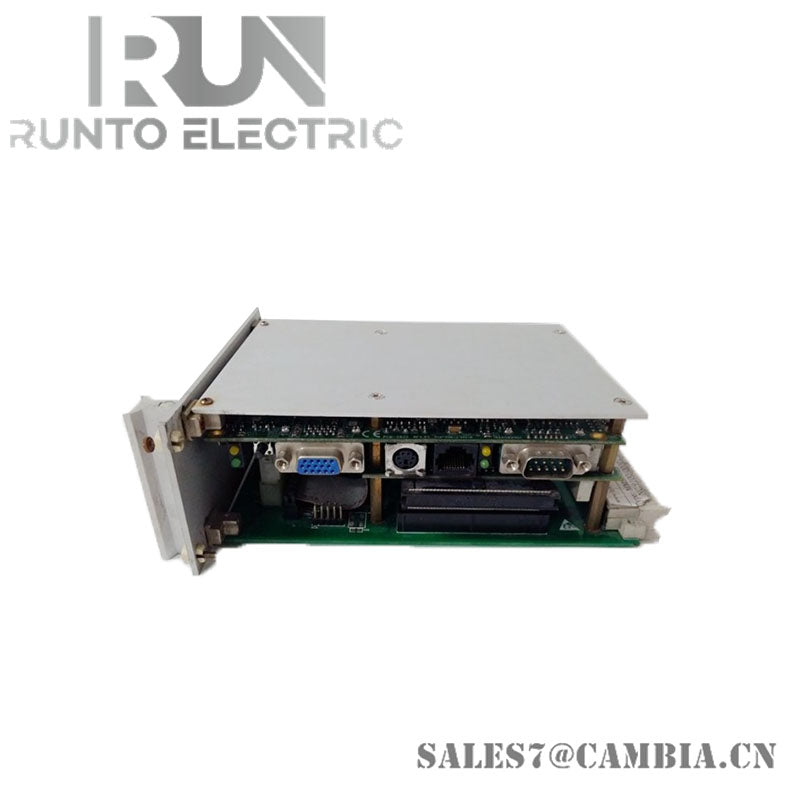

Emerson MMS-6140 Relative Rotor Vibration Monitor
Description
Technical Data:
- Open circuit and closed circuit mode
- Channel or module inhibit
- Measuring range multiplier to modify the alarm limits during run-up or run-down; adjustable within 1.000 to 4.999; 24 V logic.
- Input resistance: ≥ 30 kΩ
- Key pulse input: 1 pulse per revolution for analysis purposes of the system: 24 V Logic
- Input resistance: > 30 kΩ
- Pulse duration: min. 10µs (edge-triggered)
- Voltage inputs: 0…10 V; (Two, one for each channel)
- Input impedance: > 100 kΩ
- Resolution: 10 bit
Features:
- Part of the MMS 6000 Machine Monitoring System
- For connection of one eddy current sensor and one seismic or piezo-electric transducer.
- Signal frequency ranges 1…250 resp. 5….2000 Hz
- Both channels may also be used in single-channel mode, channel 1 for shaft vibration and channel 2 for bearing vibration.
- Measuring results of both channels to be combined with each other for calculation of the absolute shaft vibration.
- Sensor supply balanced to ground to suppress disturbances in industrial environments
- RS 232 interface for configuration and reading out of measuring results
- RS 485 interface for connection to epro’s MMS 6800 analysis and diagnosis system or to host computers
