Description:

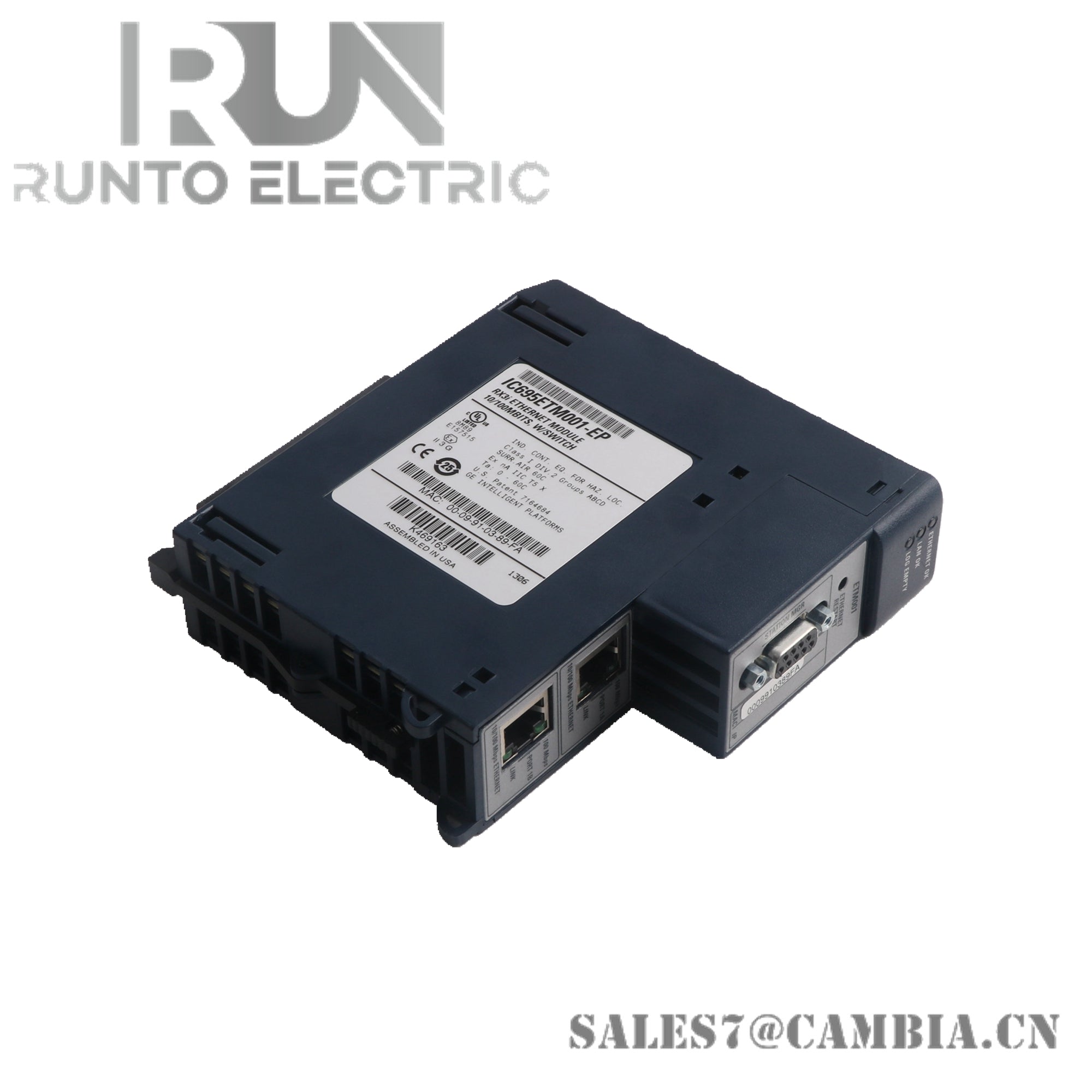

The IC695ETM001-LAAA module connects a PACSystems RX3i controller to an Ethernet network, enabling communication with other PACSystems equipment and various controllers.
Specifications:
-
Ethernet Speed: 10/100 Mbits
-
Connections: Two RJ45 ports
-
Current Consumption:
- 840 mA @ 3.3 VDC
- 614 mA @ 5 VDC
-
Operational Notes: Universal Backplane Only, uses PCI Bus
-
Communication Protocols: TCP/IP, Modbus TCP, Ethernet Global Data (EGD), Service Request Transport Protocol (SRTP)
Features:
-
Full Programming and Configuration Services: Allows for comprehensive setup and management
-
Firmware Upgrades: Can be updated via Web/HTTP or WinLoader software
-
Periodic Data Exchange: Supports EGD commands for data exchange
-
Built-in Station Manager: For online supervisory access
-
Redundant IP Addressing: Configurable for failover support
-
Time Synchronization: Supports SNTP time server
