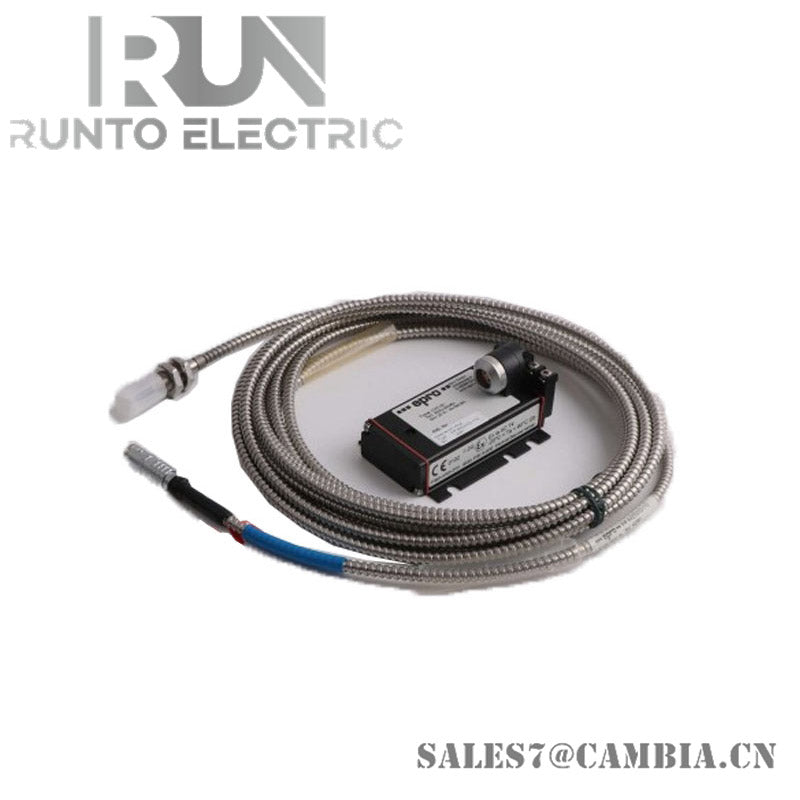

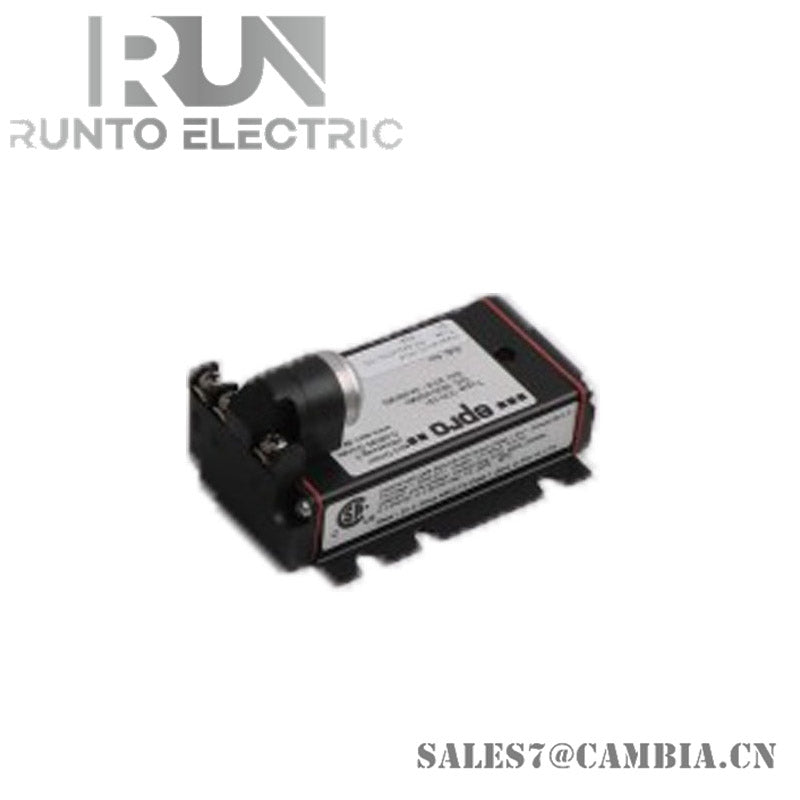

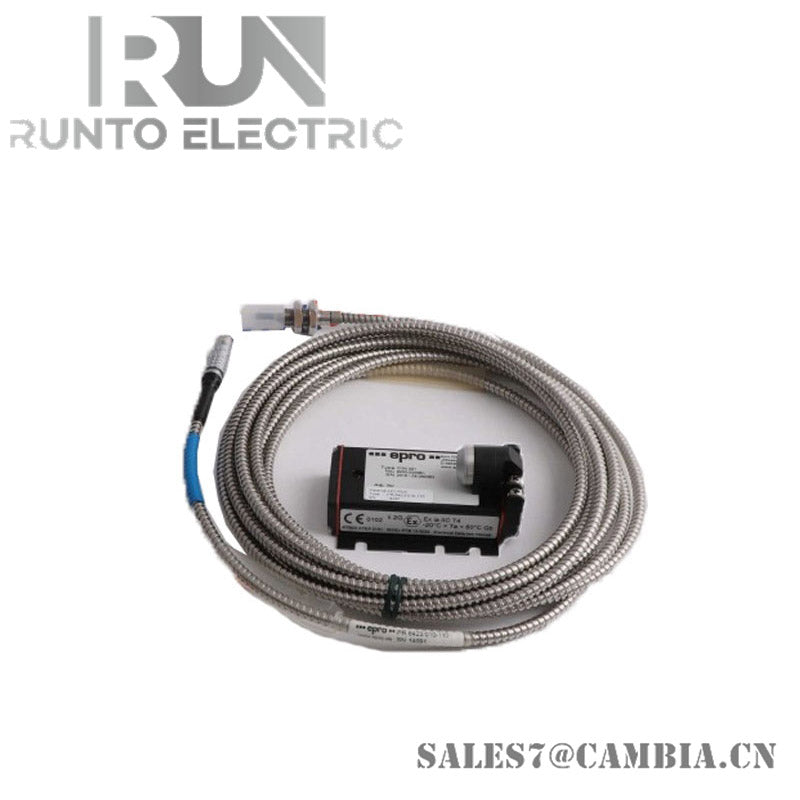

Emerson Epro PR6423/10R-040-CN Eddy Current Sensor

Description

The Emerson PR6423/10R-040-CN is an 8mm Eddy Current Sensor designed for critical turbomachinery applications such as steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans. Here are some of its key features and specifications:

Specifications

• Non-contact Sensor: Measures radial and axial shaft dynamic displacement, position, eccentricity, and speed without contacting the measured surface.
• Linear Measurement Range: 2 mm (80 mils).
• Initial Air Gap: 0.5 mm (20 mils).
• Incremental Scale Factor (ISF): ISO: 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F).
• Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F).
• Operating Temperature Range:
  • Sensor including 1m Cable: -35 to +200°C (-31 to 392°F)
  • Cable & Connector: -35 to +150°C (-31 to 302°F)
• Material:
  • Sensor Tip: PEEK (Polyether Ether Ketone)
  • Case: Stainless Steel
  • Cable: PTFE (Polytetrafluoroethylene)
  • Connector: Brass, nickel-plated
• Weight: Sensor with 1m Cable: Approx. 100 grams (3.53 oz)

New and Original Item in Stock

Warranty: One year warranty provided.

Contact Us

For inquiries, please contact: sales7@cambia.cn

Q&A

Q: Do you provide warranty for the goods?

• A: Yes, we provide warranty for all the goods from us.

Q: Could you provide technology support?

• A: We've been in this field for more than 12 years. If there's any problem, please contact us. We'll provide suggestions from our engineer to help you solve the problem.

Q: Do you keep goods in stock or only trade?

• A: We have a large warehouse for goods and keep lots of goods in stock, so we can promise fast delivery.

Q: Are your goods new and original?

• A: Yes, they are new and original.
