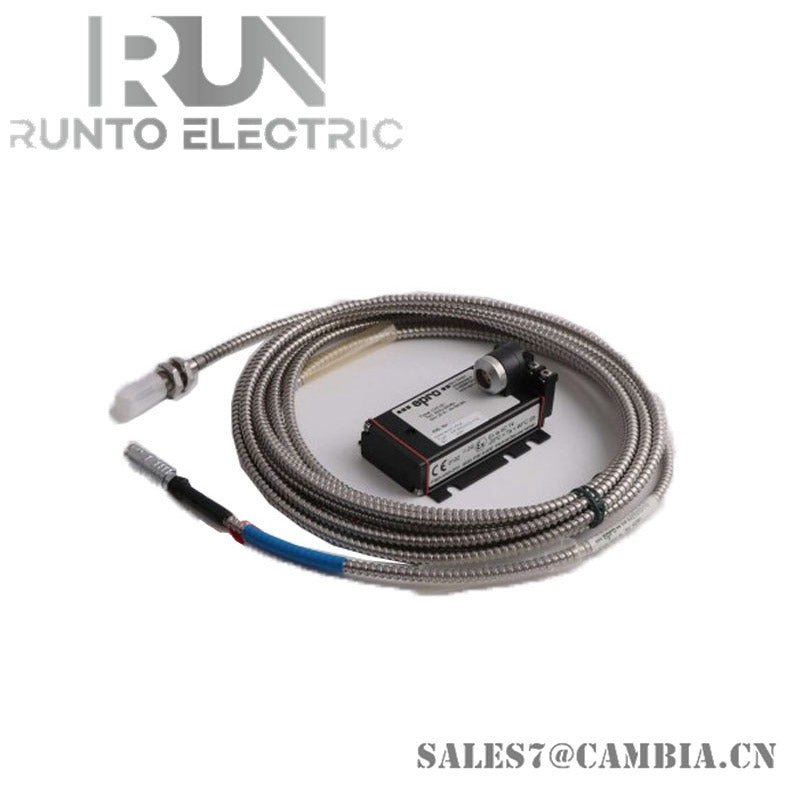

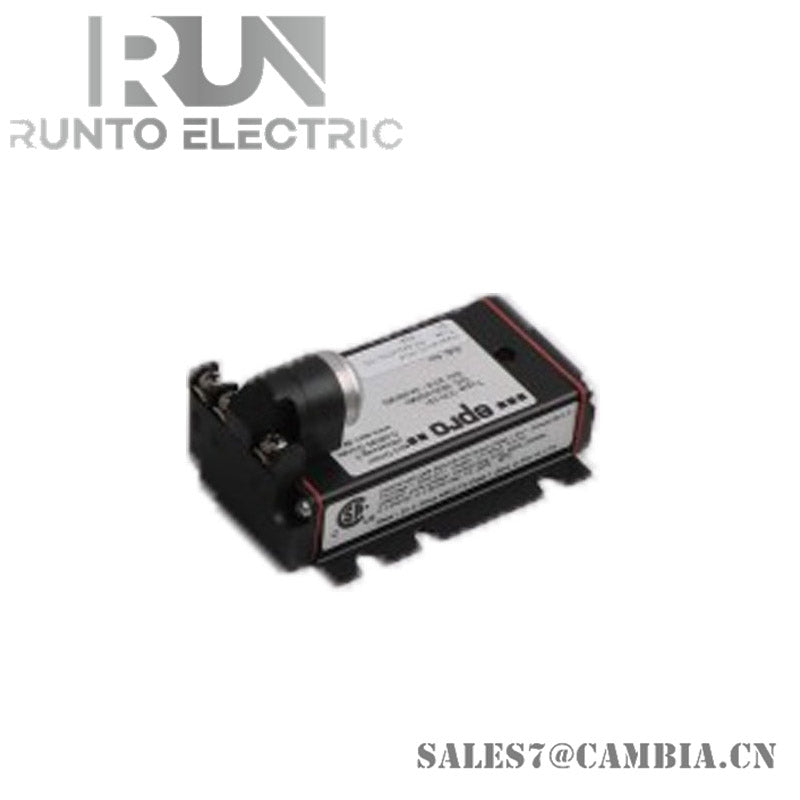

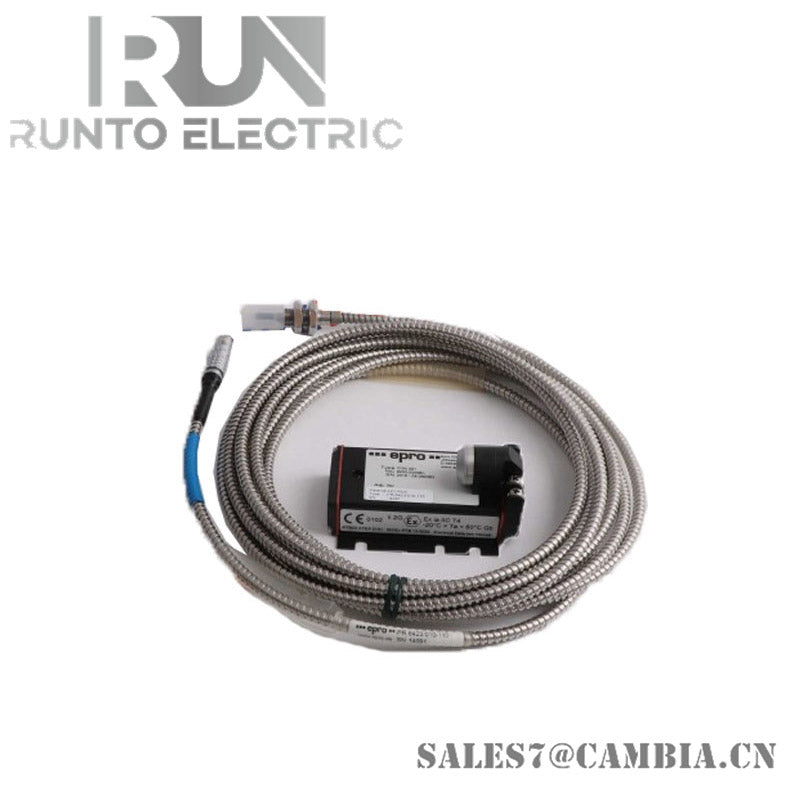

Emerson EPro PR6423/010-000 Eddy Current Sensor

Specifications:

• Linear Measurement Range: 2 mm (80 mils)
• Initial Air Gap: 0.5 mm (20 mils)
• Operating Temperature Range:
  • Sensor: -35 to +200°C (-31 to 392°F)
  • Cable & Connector: -35 to +150°C (-31 to 302°F)
• Material:
  • Sensor Tip: PEEK (Polyether Ether Ketone)
  • Case: Stainless Steel
  • Cable: PTFE (Polytetrafluoroethylene)
  • Connector: Brass, nickel-plated
• Protection Class: IP66
• Weight: Approximately 100 grams (3.53 oz) with 1m cable

Features:

• Non-Contact Measurement: Measures without contacting the surface, ideal for monitoring shaft position and motion.
• High Sensitivity: Incremental Scale Factor (ISF) of 8 V/mm (203.2 mV/mil) ± 5% over a temperature range of 0 to 45°C.
• Robust Construction: Designed to withstand harsh industrial environments.
• Compliance: Meets international standards including DIN 45670, ISO 10817-1, and API 670.

Applications:
Used in steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans to measure radial and axial shaft dynamic displacement, position, eccentricity, and speed.
