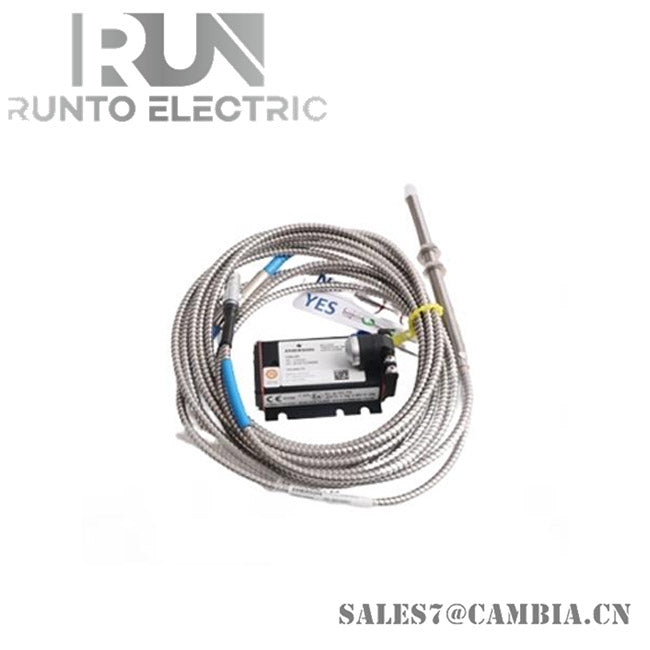

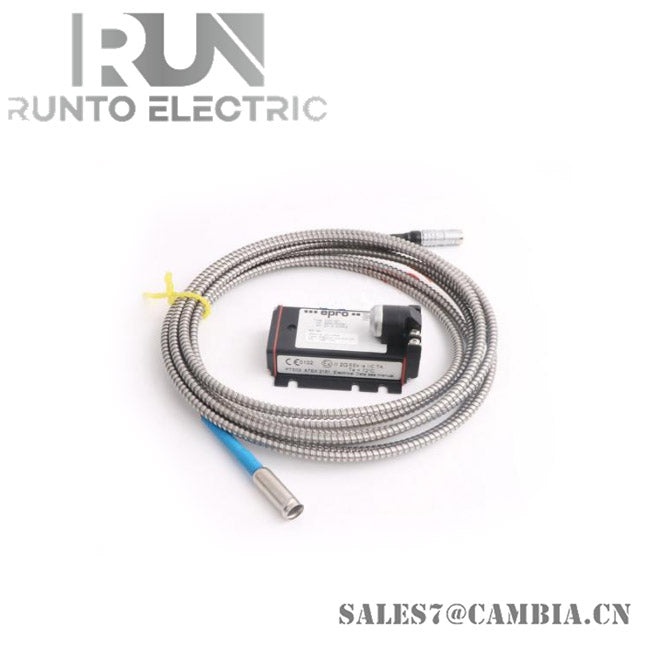

Emerson EPRO CON021/916-240 Eddy Current Signal Converter

Specifications

• Measurement Range: 8 mm
• Accuracy: ±1%
• Output Signal: -4V to -20V (Supply Voltage Range: -23V to -32V)
• Power Supply: DC -23V to -32V
• Operating Temperature: -30°C to 100°C
• Weight: ~120 grams (4.24 oz)
• Frequency Range: 0 to 20,000 Hz
• Rise Time: < 15 µs

Features

• Non-contact Sensor: Capable of measuring radial and axial shaft displacement, position, eccentricity, and speed without contacting the measured surface.
• Dynamic Performance: Supports a frequency range of 0 to 20,000 Hz with a rapid rise time of less than 15 µs.
• Environmental Resistance: Operates in extreme environments with a temperature range of -30°C to 100°C and an IP20 protection class.
• Shock and Vibration Resistant: Withstands 5g at 60 Hz at 25°C, ensuring performance in high-vibration environments.
• Housing Material: Constructed with LMgSi 0.5 F22 for durability.
• Mounting: Comes with 4 screws (M5x20) for easy mounting.
• Connections: Includes transducer self-locking Lemo-plug and supply/output screw terminal (max. 1.5mm² with wire-end sleeves).
• Compliance and Certifications: CE certified, meets 2014/30/EU standards.
