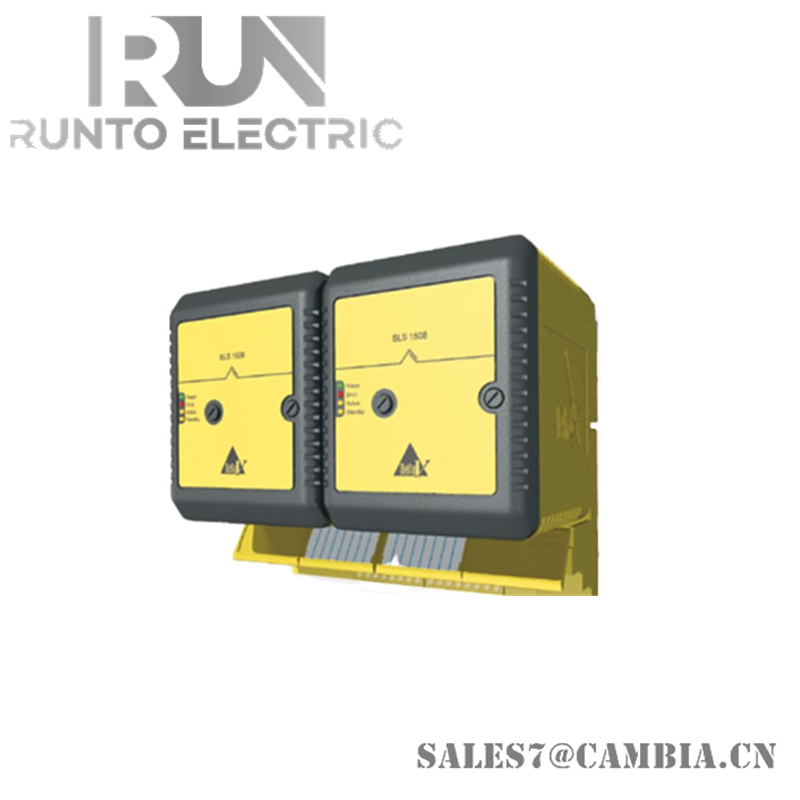

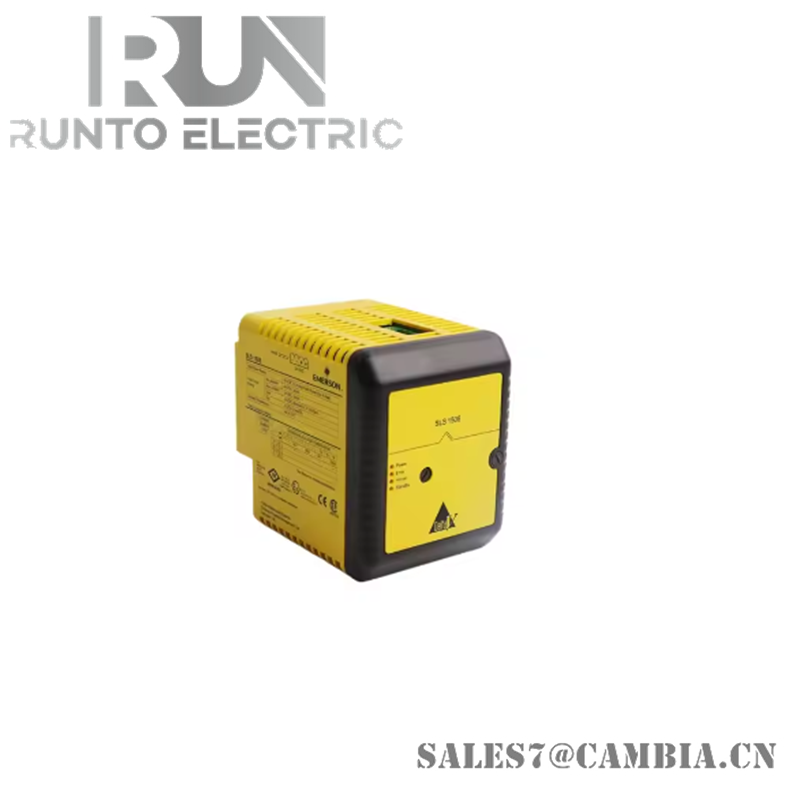

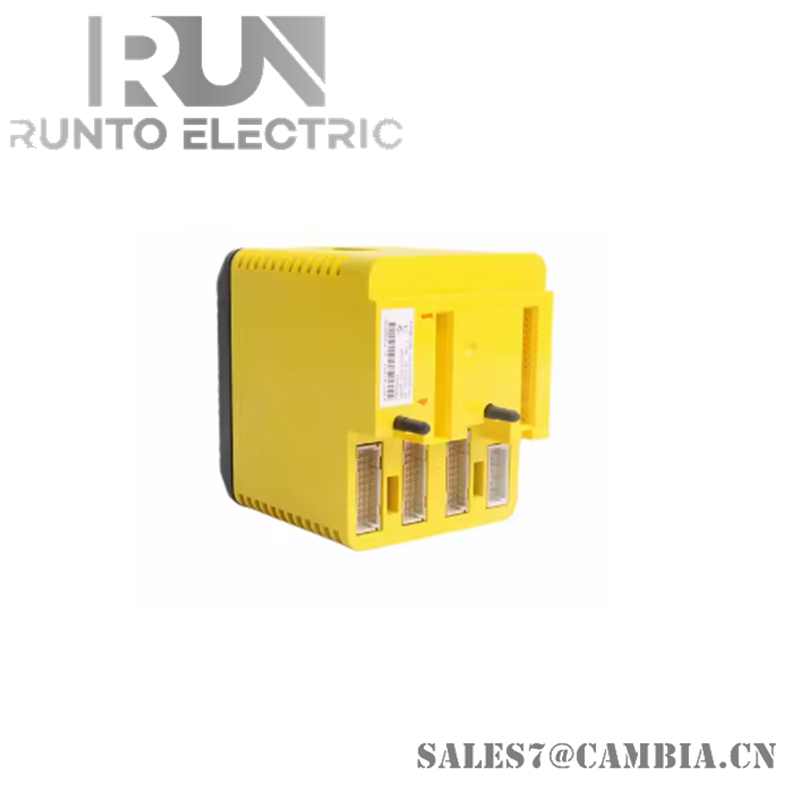

Emerson DeltaV SLS1508（KJ2201X1-BA1+KJ2201X1-HA1）SIS Smart Logic Solver

Overview

The SLS1508 is designed for critical turbo machinery applications, including steam, gas, and hydro turbines, compressors, pumps, and fans. It measures radial and axial shaft displacement, position, eccentricity, and speed/key.

Features

• Number of I/O Channels: 16 (configurable as Digital Input (DI), Digital Output (DO), Analog Input (AI), or HART two-state output)
• Communication Network: SISnet (local peer bus and remote peer ring)
• Power Supply: 24 VDC (separate from the DeltaV controller)
• Dimensions: 5.1 x 12.7 x 16.5 cm
• Weight: 0.3 kg

Specifications

• Environmental Specifications:
  • Ambient Temperature: -40°C to +70°C
  • Shock: 10g 1/2 Sinewave for 11 msec
  • Vibration: 1 mm Peak to Peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz
  • Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
  • Relative Humidity: 5 to 95% Non-Condensing
