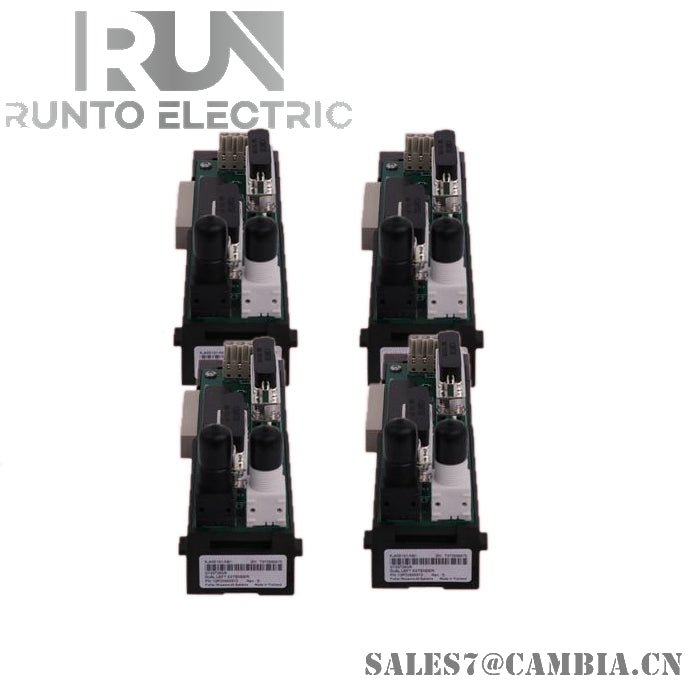

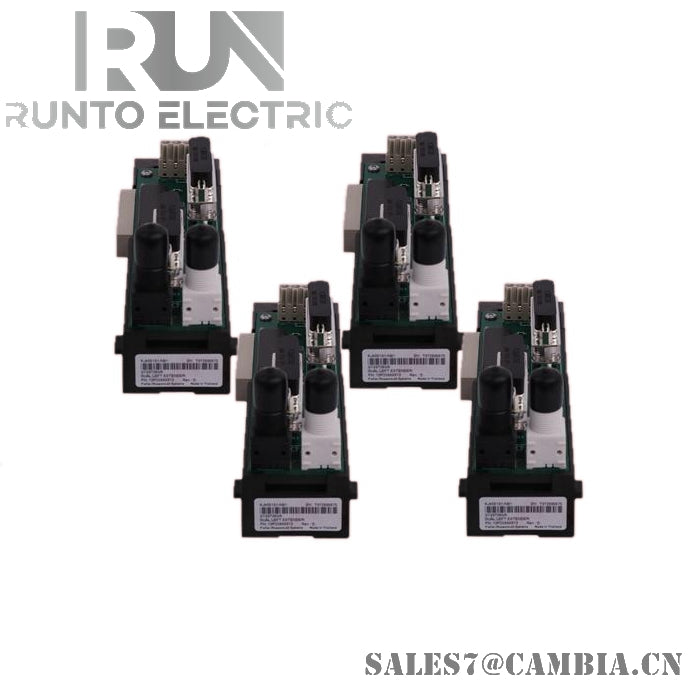

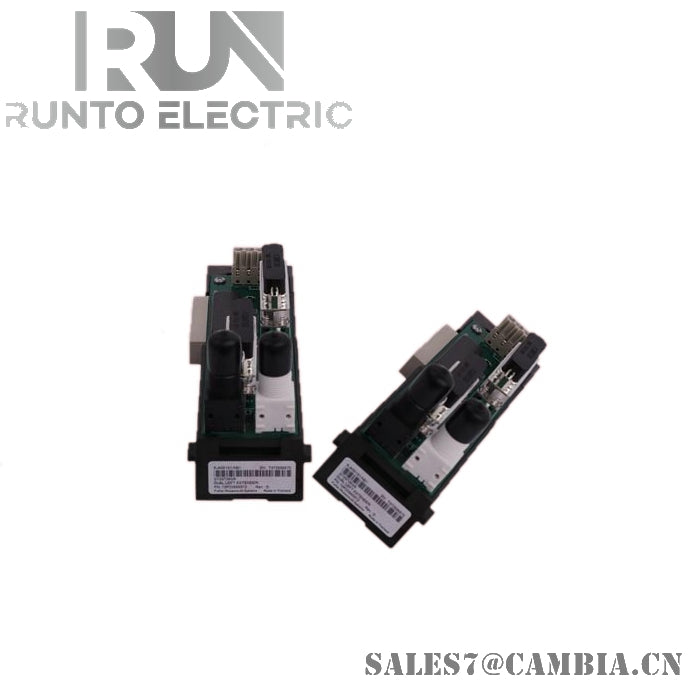

Emerson DeltaV KJ4001X1-BA3 2 Wide Carrier Base Module

Description

• Model: KJ4001X1-BA3

• Type: 2-Wide Power/Controller Carrier

• Brand: Emerson

Features:

• Power Specifications:

  • Input Power: 30 VDC at 8 A

• Environmental Specifications:

  • Ambient Temperature: -40°C to +70°C
  • Shock: 10g 1⁄2 Sinewave for 11 ms
  • Vibration:
    • 1 mm Peak to Peak from 2 to 13.2 Hz
    • 0.7g from 13.2 to 150 Hz
  • Relative Humidity: 5 to 95% Non-Condensing
  • Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3

• Safety Approvals:

  • Hazardous Atmosphere: II 3G Ex ec IIC Gc
  • Certifications: FM16ATEX0056U, FM21UKEX0017U, FM17US0286U, FM17CA0145U

Specifications:

• Installation: This unit cannot be removed or inserted with the system power energized. Power must be de-energized before disconnecting any carriers or LocalBus Extender cables.
• Maintenance: Contains no user-serviceable parts and should not be disassembled. Calibration is not required.
