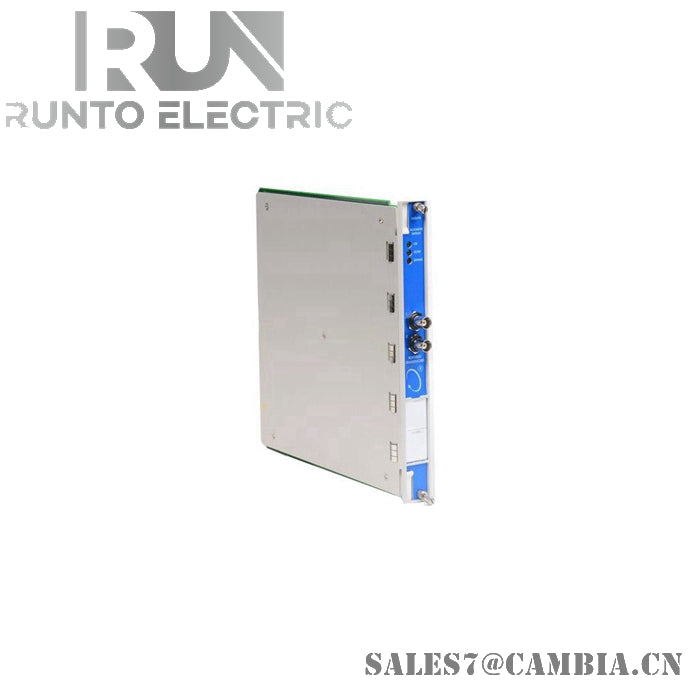

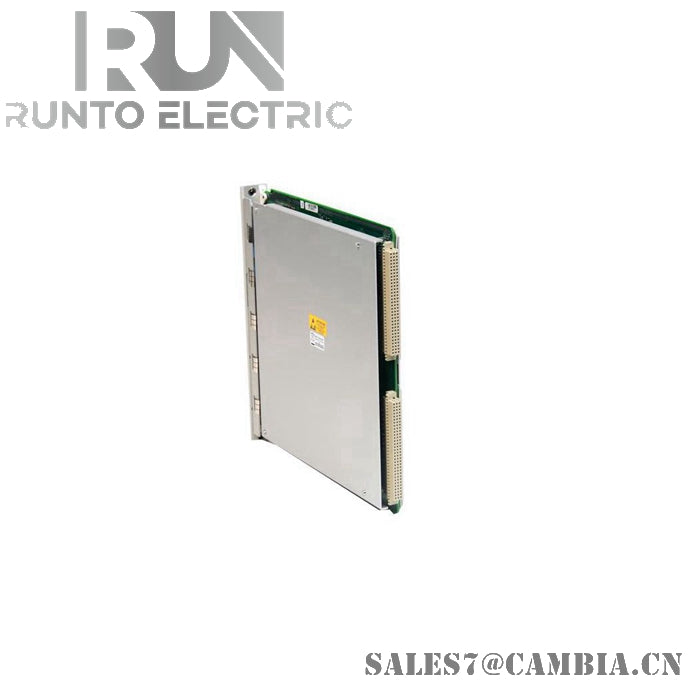

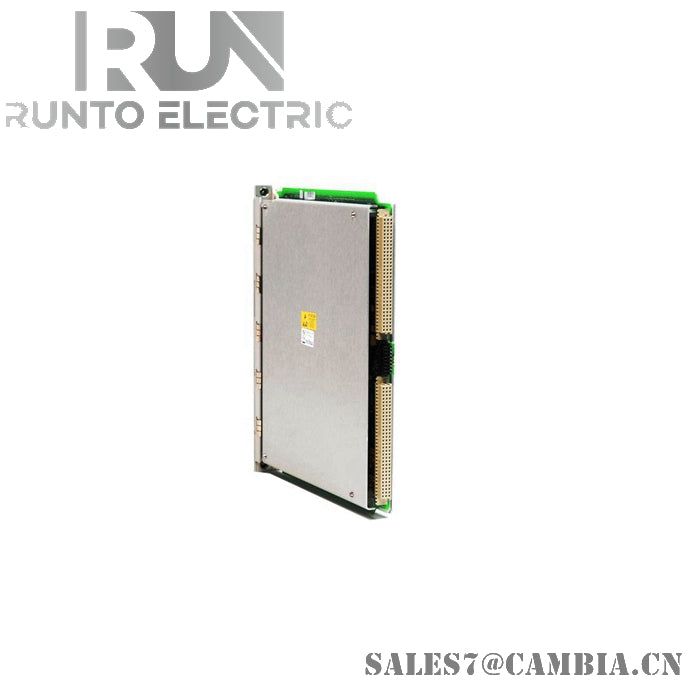

Bently Nevada 3500/64M 140734-05 Dynamic Pressure Monitor

Description

The 3500/64M 140734-05 module is designed for monitoring dynamic pressure in rotating machinery, providing real-time data on machinery health by processing signals from high-temperature pressure transducers.

Specifications

• Channels: 4 channels, each capable of monitoring a pressure transducer signal
• Input Signal: Accepts signals from high-precision pressure transducers
• Sensitivity: 100 mV/psi (1.45 mV/mBar)
• Input Impedance:
  • 10 kΩ for 3-wire transducers
  • 1.5 MΩ to 3.5 MΩ for 2-wire transducers
• Output:
  • Analog outputs: 0 to +12 Vdc
  • Recorder outputs: 4 to 20 mA
• Resolution: 0.366 μA per bit, with an error of ±0.25% at room temperature
• Filtering:
  • Low mode: 5 Hz to 4 kHz
  • High mode: 10 Hz to 14.75 kHz
• Update Rate: Approximately 100 ms or less
