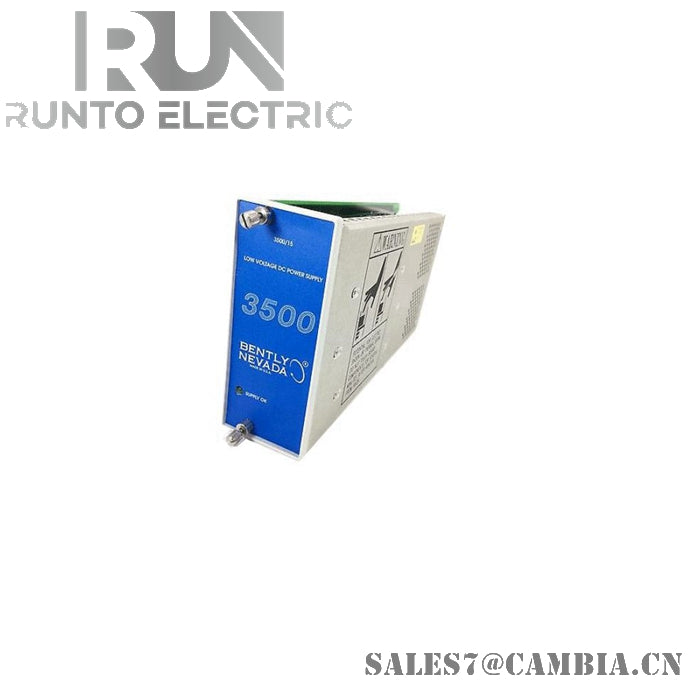

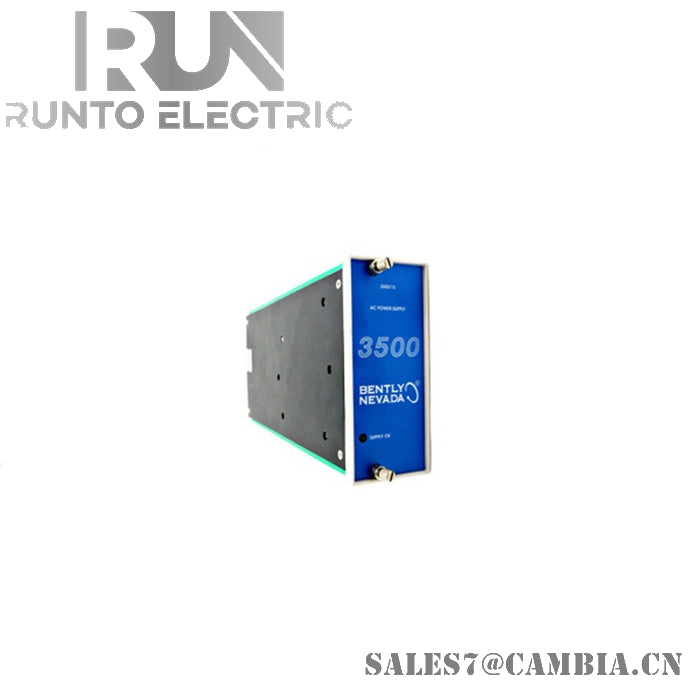

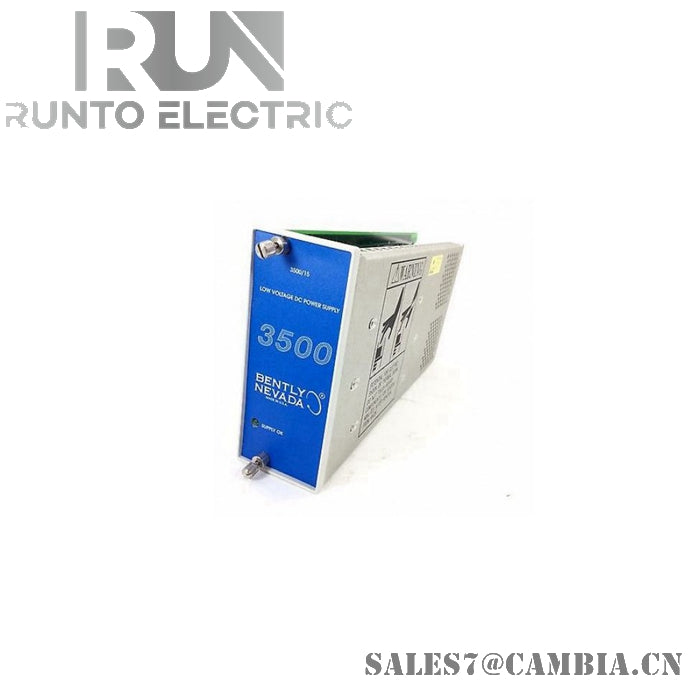

Bently Nevada 3500/15 AC and DC Power Supplie Brand New Original

Product Description:

• The 3500/15 AC and DC Power Supplies are half-height modules.
• They must be installed in designated slots on the left side of the rack.
• The 3500 rack can contain one or two power supplies, with any combination of AC and DC.
• Either supply can power a full rack.
• When two power supplies are installed, the lower slot acts as the primary supply, and the upper slot acts as the backup supply.
• Removing or inserting a power supply does not disrupt the rack's operation if a second power supply is installed.
• Accepts a wide range of input voltages and converts them to voltages acceptable for use by other 3500 modules.
• Different power supply options are available, such as Universal AC, High Voltage DC, and Low Voltage DC.

Specifications:

• Universal Voltage AC:
  • Input Voltage: 110 to 220 Vac nominal, 85 to 264 Vac rms, 120 to 373 Vac pk.
  • Input Frequency: 47 to 63 Hz.
• High Voltage DC:
  • Input Voltage: 88 to 140 Vdc.
• Low Voltage DC:
  • Input Voltage: 20 to 30 Vdc.
• Current Information:
  • Full Rack Current Draw:
    • Universal Voltage AC: 2.8 A rms (maximum).
    • High Voltage DC: 2.5 A (maximum).
    • Low Voltage DC: 11.0 A (maximum).

Outputs:

• Front Panel LEDs:
  • Supply OK LED: Indicates when the power supply is operating properly.

Physical Characteristics:

• Power Supply Module Dimensions: 120.7 mm x 50.8 mm x 251.5 mm, Weight: 1.39 kg (3.06 lb).
• Power Input Modules Dimensions: 120.7 mm x 25.4 mm x 114.3 mm, Weight: 0.34 kg (0.75 lb).
• Rack Space Requirements: Two half-height slots on the left side of the rack.

Miscellaneous:

• No minimum rack load requirement.
• Environmental Limits:
  • Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F).
  • Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F).
  • Humidity: 95%, non-condensing.

Ordering Information（100% original in stock）

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone inquire from us, please click this sales7@cambia.cn

1. Lower your support costs

2. Provide on-going availability of automation replacement parts

Quantity available: 10

Warranty: 12 months.

Technical specification, manuals, and data sheets

Inquiry details, please pay attention to the following:

1. All quotes are based on EXW only

2. Shipping time: 5-7 days, via DHL/TNT/UPS/EMS/Fedex

3. Payment terms: 100% T/T payments before shipping
