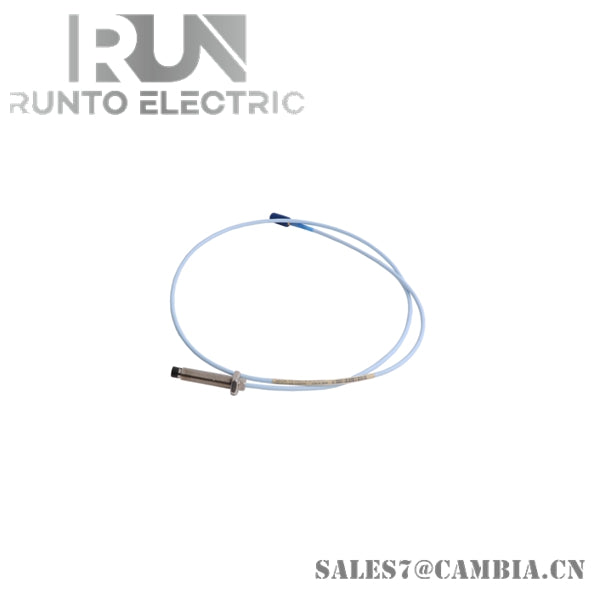

Bently Nevada 330903-02-16-05-02-00 3300 XL NSv Proximity Probe

Overview

The Bently Nevada 330903-02-16-05-02-00 is a 3300 XL NSv proximity probe, a non-contacting vibration and position sensor that uses eddy currents to measure the proximity of a target to the probe tip. It is designed for use in harsh environments and is resistant to shock, vibration, and temperature extremes.

Technical Specifications

• Range: 0 to 1.5 mm (0 to 60 mils)
• Accuracy: ±2.5% of full range
• Resolution: 0.1 µm (0.4 µin)
• Frequency response: 20 Hz to 20 kHz
• Output: 7.87 V/mm (200 mV/mil)
• Operating temperature: -40 to 260°C (-40 to 500°F)
• Protection rating: IP67
