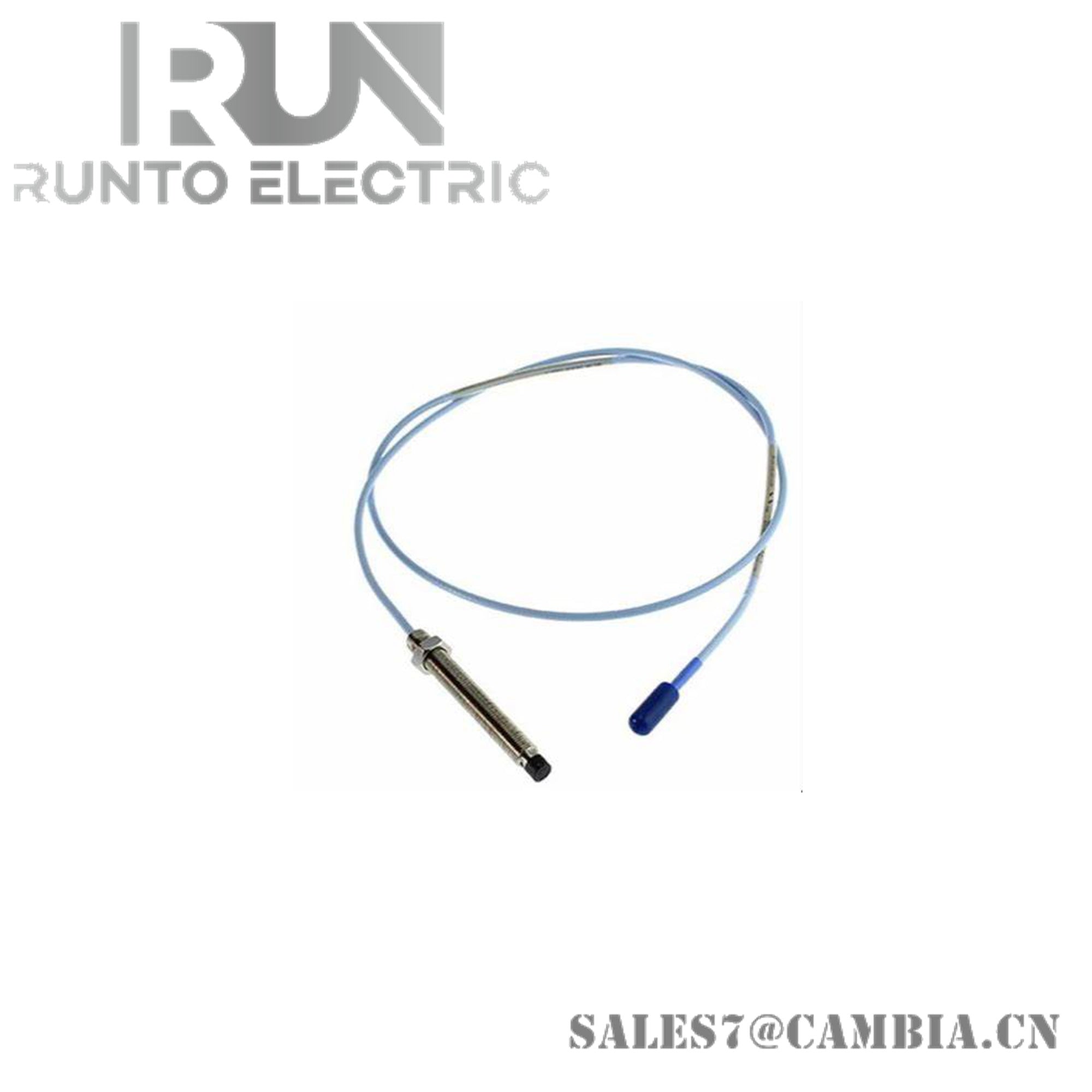

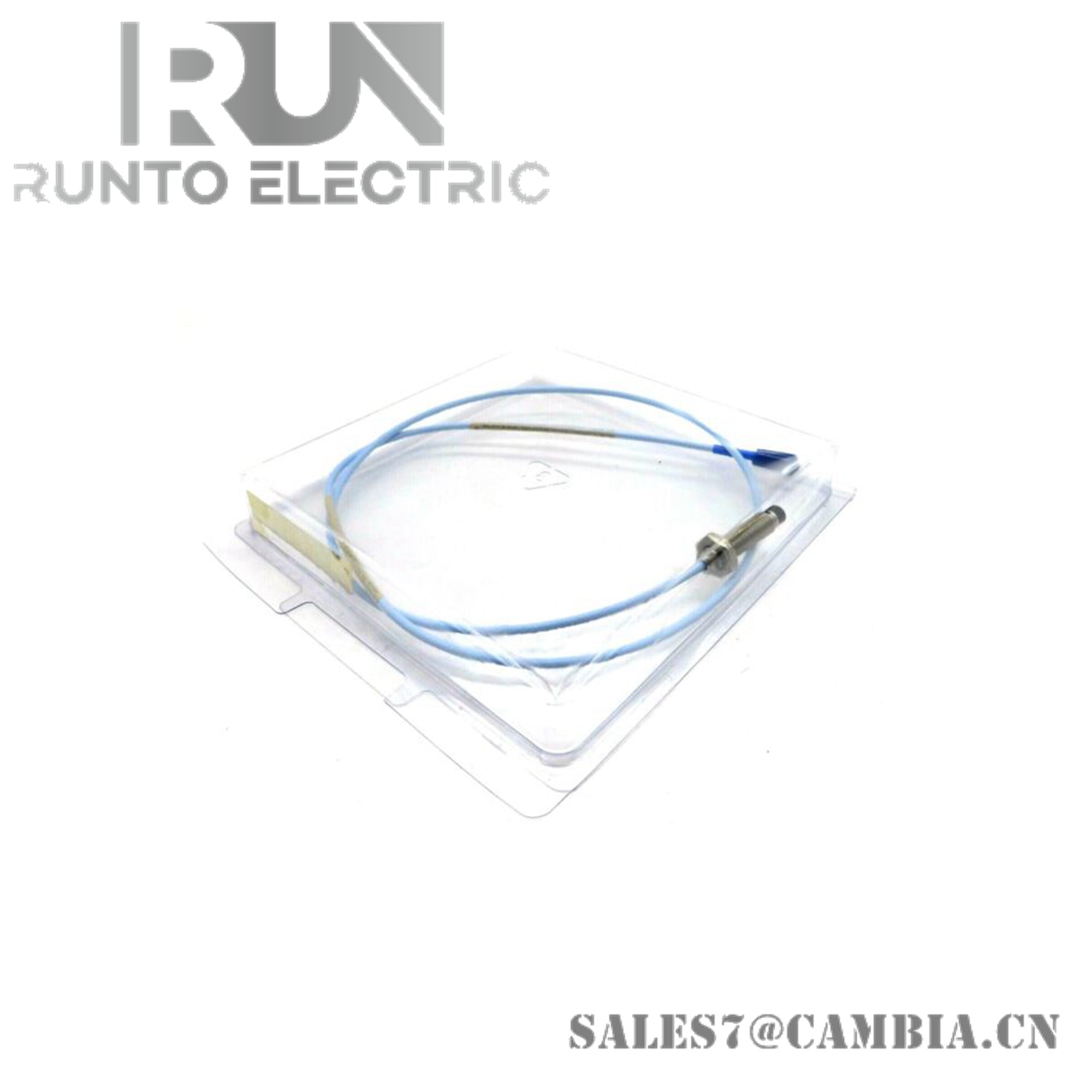

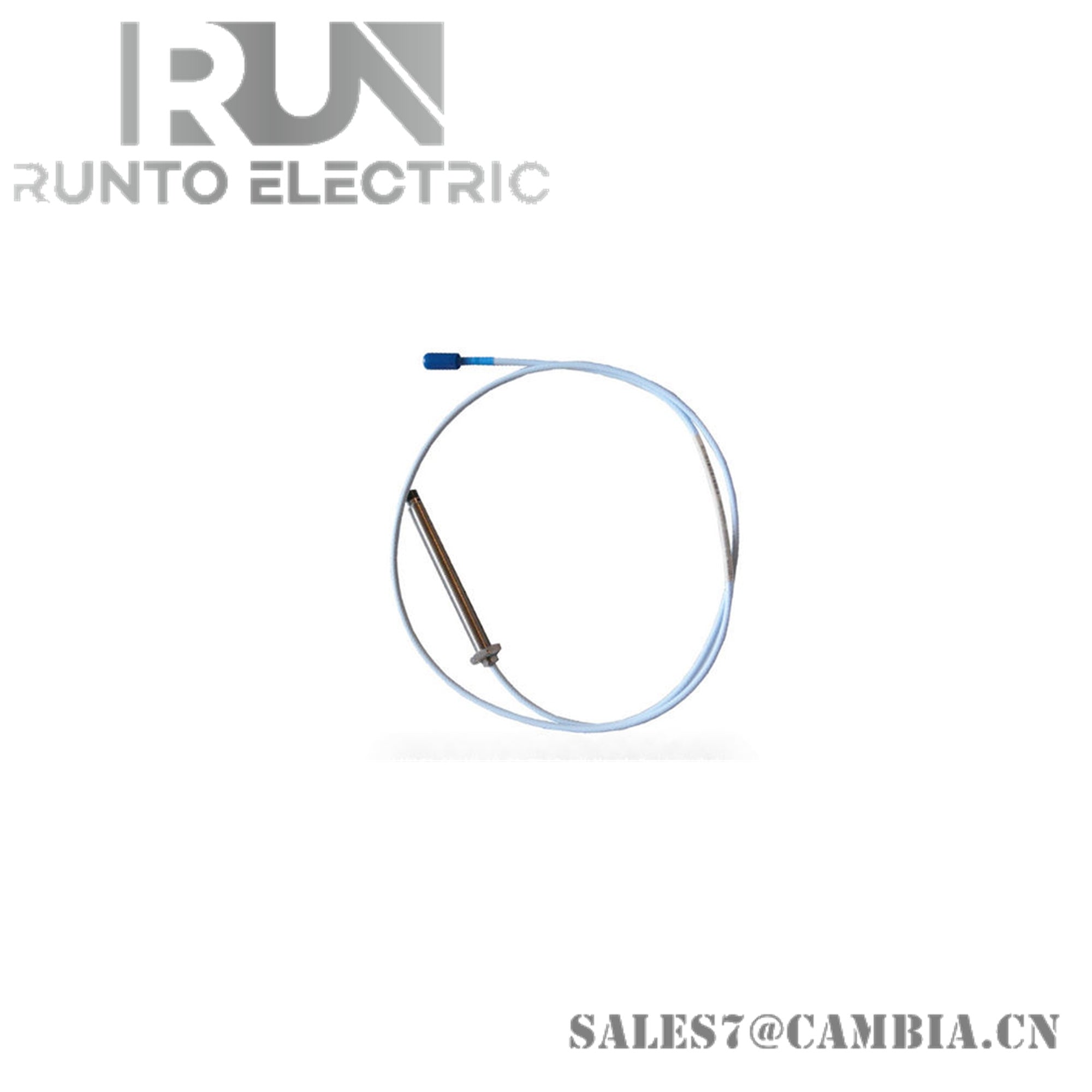

Bently Nevada 330103-00-04-10-01-00 3300 XL 8 mm Proximity Probes

Specifications

• Standard Cable:
  • 75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable.
  • Available in total probe lengths of 0.5, 1, 1.5, 2, 3, 5, or 9 meters.
• Extended Temperature Range Cable:
  • 75Ω triaxial, perfluoroalkoxy (PFA) insulated probe cable.
  • Available in total probe lengths of 0.5, 1, 1.5, 2, 5, or 9 meters.
• Armor (optional on both):Flexible AISI 302 or 304 stainless steel with FEP outer jacket.
• Tensile Strength (Maximum Rated):
  • 330 N (75 lbf) probe case to probe lead.
  • 270 N (60 lbf) at probe lead to extension cable connectors.
• Connector Material:Gold-plated brass or gold-plated beryllium copper.
• Weight:323 g/m

Ordering Information

330103-AA-BB-CC-DD-EE

Length Configurations:

• Order in increments of 10 mm.
• Maximum unthreaded length: 230 mm.
• Minimum unthreaded length: 0 mm.
• Example: 06 = 60 mm

B: Overall Case Length Option:

• Order in increments of 10 mm.
• Metric thread configurations:
  • Maximum case length: 250 mm.
  • Minimum case length: 20 mm.
• Example: 06 = 60 mm

C: Total Length Option:

• 10 = 1.0 meter (3.3 feet)

D: Connector and Cable-Type Option:

• 01 = Miniature coaxial ClickLoc connector with connector protector, standard cable

E: Agency Approval Option:

• 00 = Not required

New and Original Item in Stock

• Warranty: One year warranty
• Quantity Available: 10
• Technical Specification, Manuals, and Data Sheets: Available

Inquiry Details:

• Contact: sales7@cambia.cn
• Benefits:
  • Lower your support costs
  • Provide ongoing availability of automation replacement parts

Shipping and Payment Terms:

• All quotes based on EXW only.
• Shipping time: 5-7 days via DHL/TNT/UPS/EMS/Fedex.
• Payment terms: 100% T/T payments before shipping.
