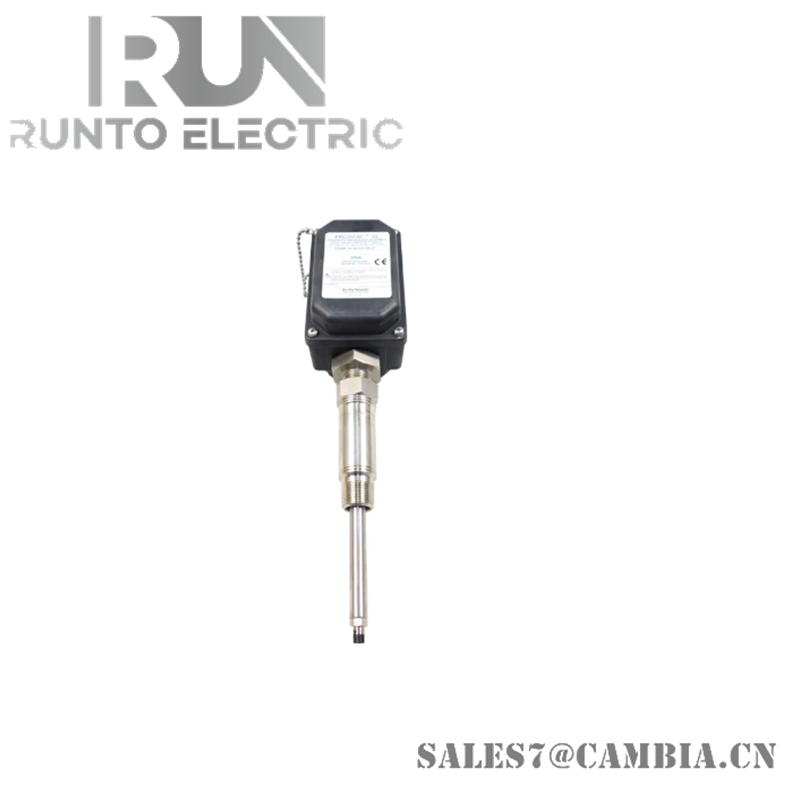

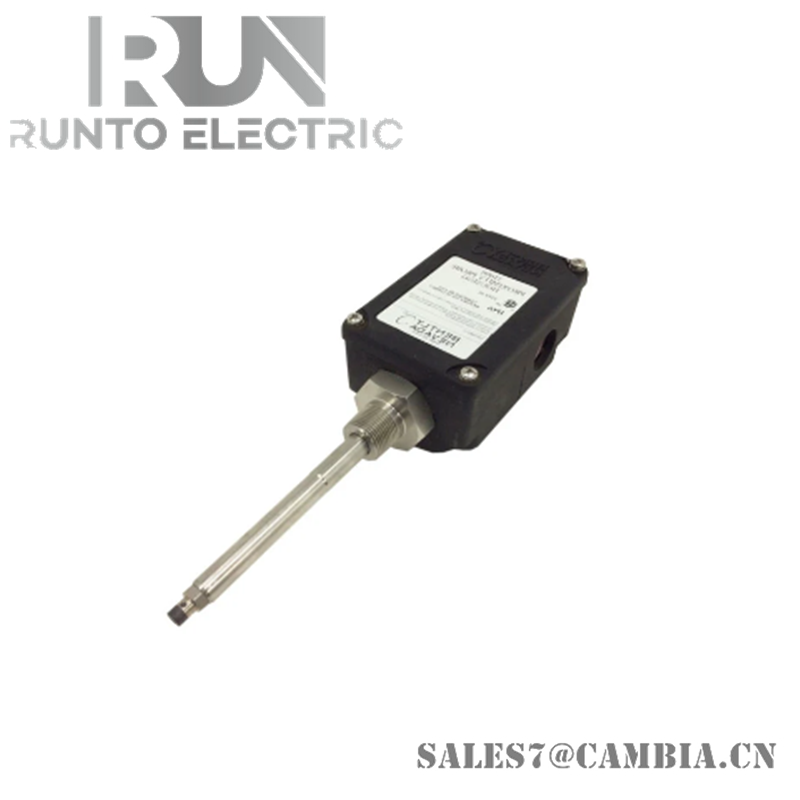

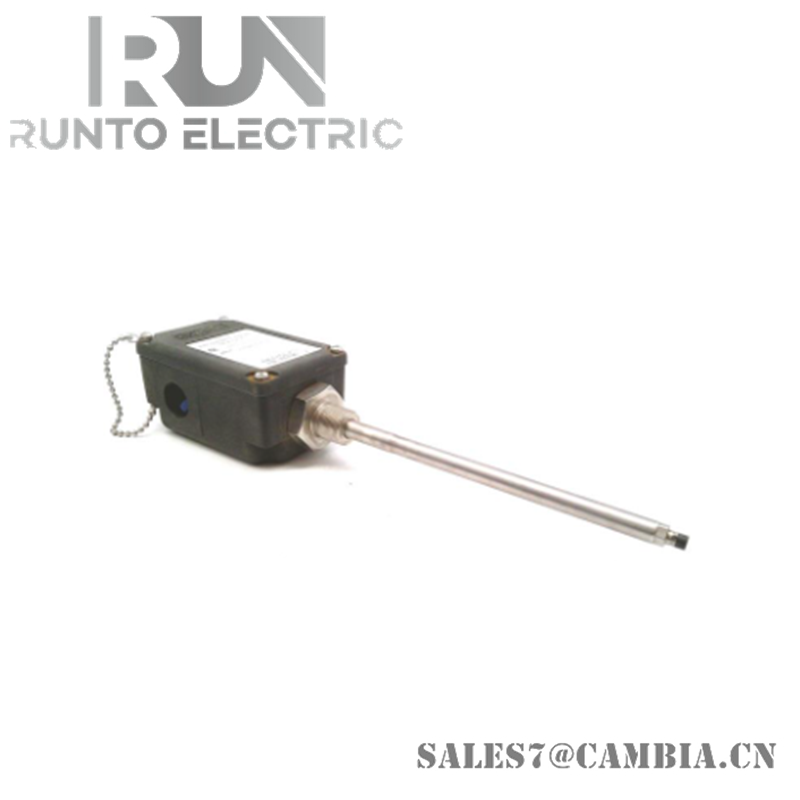

Bently Nevada 32000-00-00-04-420-01-02 Proximity Probe

Description:

The 32000-00-00-04-420-01-02 housing assembly is designed for radially mounted transducers used in vibration or Keyphasor measurements. It allows for easy external access to the probe and its extension cable, making it possible to adjust the probe gap or replace components without disassembling the machine.

Features:

• Material: Constructed from durable polyphenylene sulfide (PPS) and corrosion-resistant stainless steel.
• Standards Compliance: Complies with API 670 standards for externally mounted proximity probe housings.
• Hazardous Area Compatibility: Suitable for intrinsically safe hazardous environments; not explosion-proof.
• Temperature Range: Reliable operation from -52°C to +100°C (-62°F to +212°F).
• Storage Temperature: Withstands temperatures from -52°C to +105°C (-62°F to +221°F).
• Compatibility: Designed for use with the 3300 XL 8 mm probe.

Specifications:

• Dimensions: 155 x 136 x 119 mm.
• Weight: 280 g.
• Environmental Conditions: Built to withstand high humidity environments.
