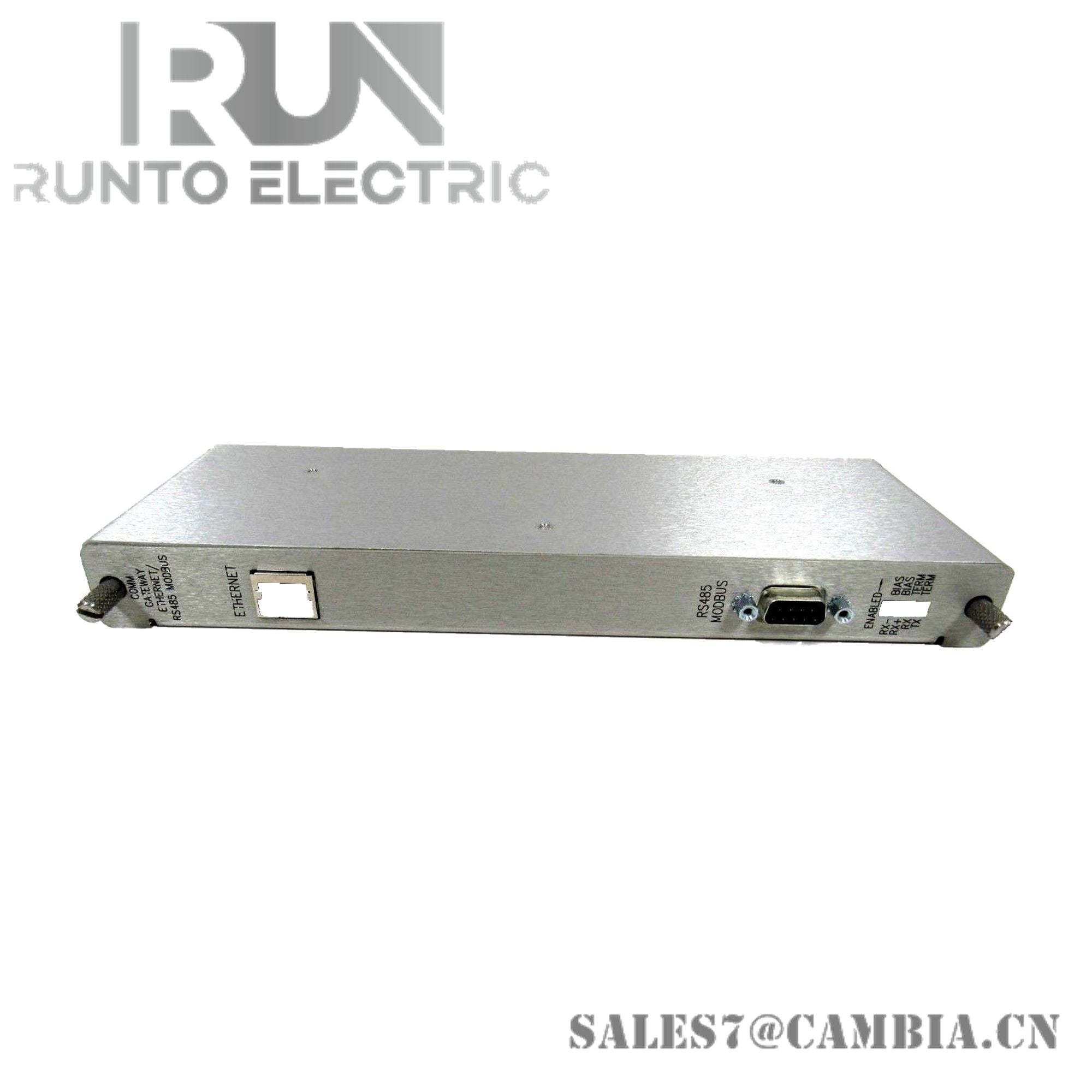

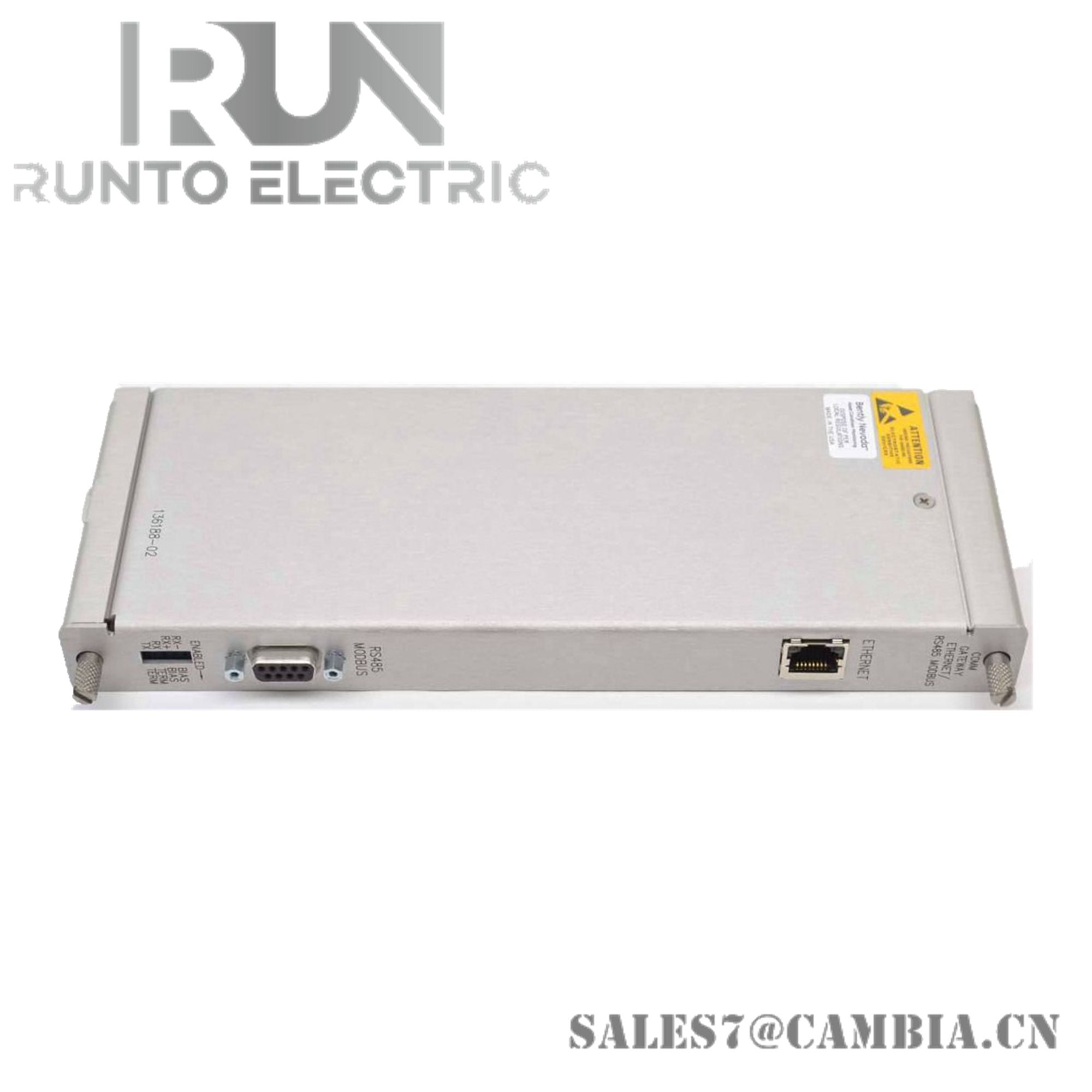

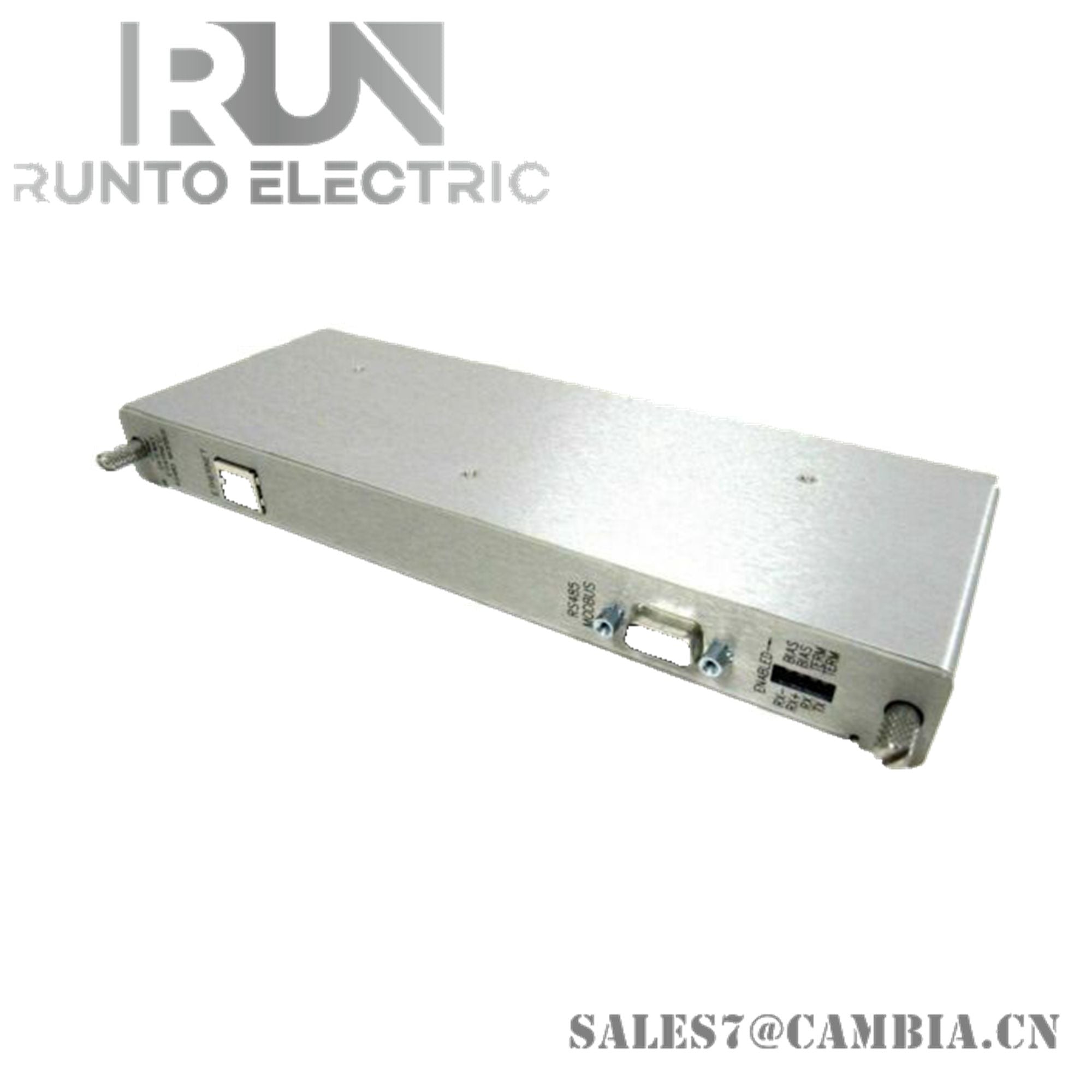

Bently Nevada 135183-01 Display Interface I/O Module

Description

The 3500/93 System Display is engineered to comply with the American Petroleum Institute Standard 670. It offers both local and remote visual indications of all data from the 3500 Machinery Protection System, including system and alarm event lists, and data from various modules such as channel, monitor, relay, Keyphasor, or Tachometer Modules.

Features

• Local or Remote Visual Indication: Displays comprehensive information from the 3500 Machinery Protection System.
• Multiple Mounting Options: Can be mounted in several configurations: face-mounted, 19-inch EIA rack-mounted, panel-mounted, or independently mounted.
• Up to Two Displays per Rack: Each display requires one empty 3500 rack slot for its corresponding Display Interface Module (DIM).
• High-Speed Data Collection: Gathers current values and alarm statuses via a high-speed internal network.

Specifications

• Power Consumption:
  • Maximum: 15.5 watts (Display Unit & Display Interface Module combined)
  • -01 Display Unit: 5.6 watts
  • -02 Display Unit: 12.0 watts
• Inputs: Data collection via a high-speed internal network.
• Outputs: Provides visual indications of system status and events.
