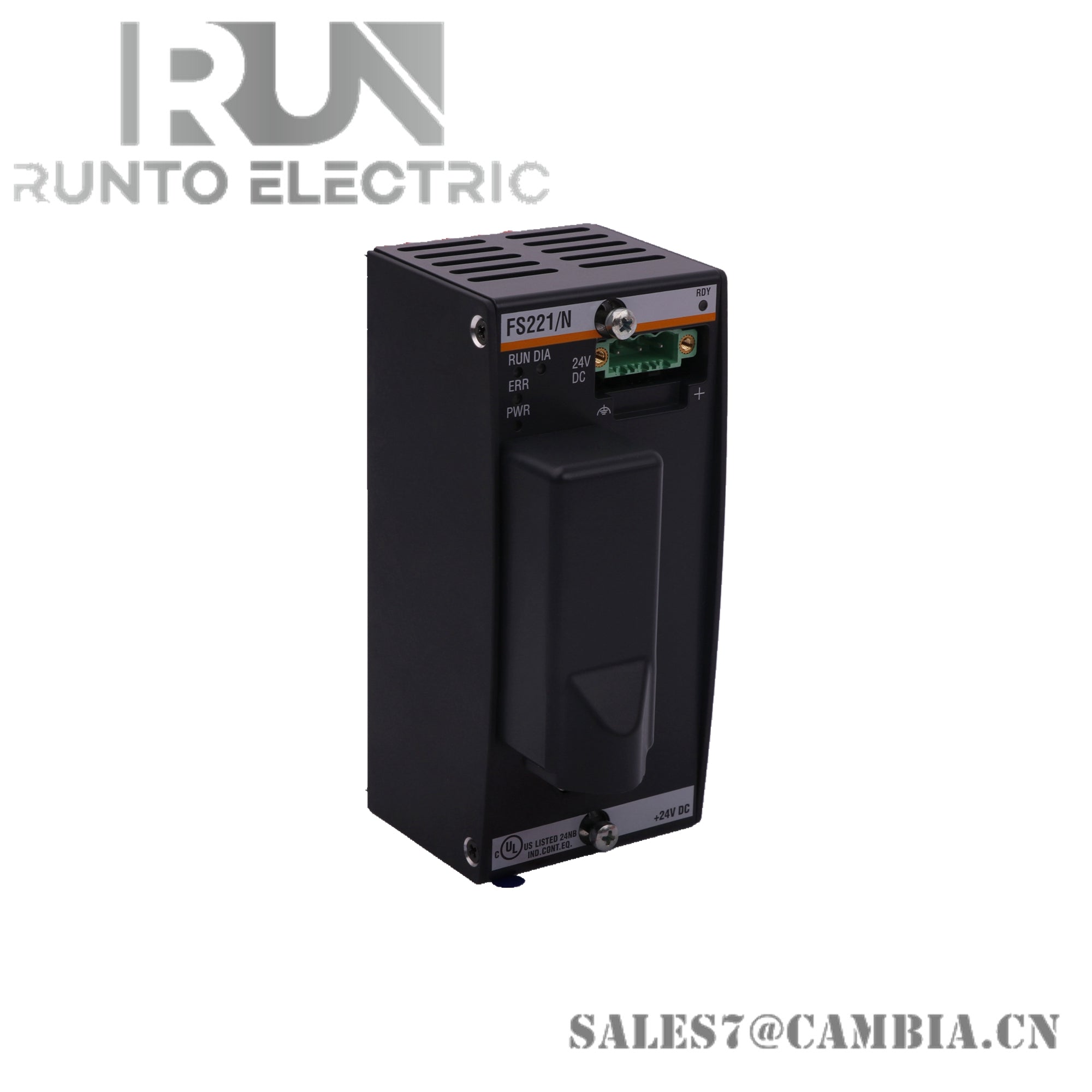

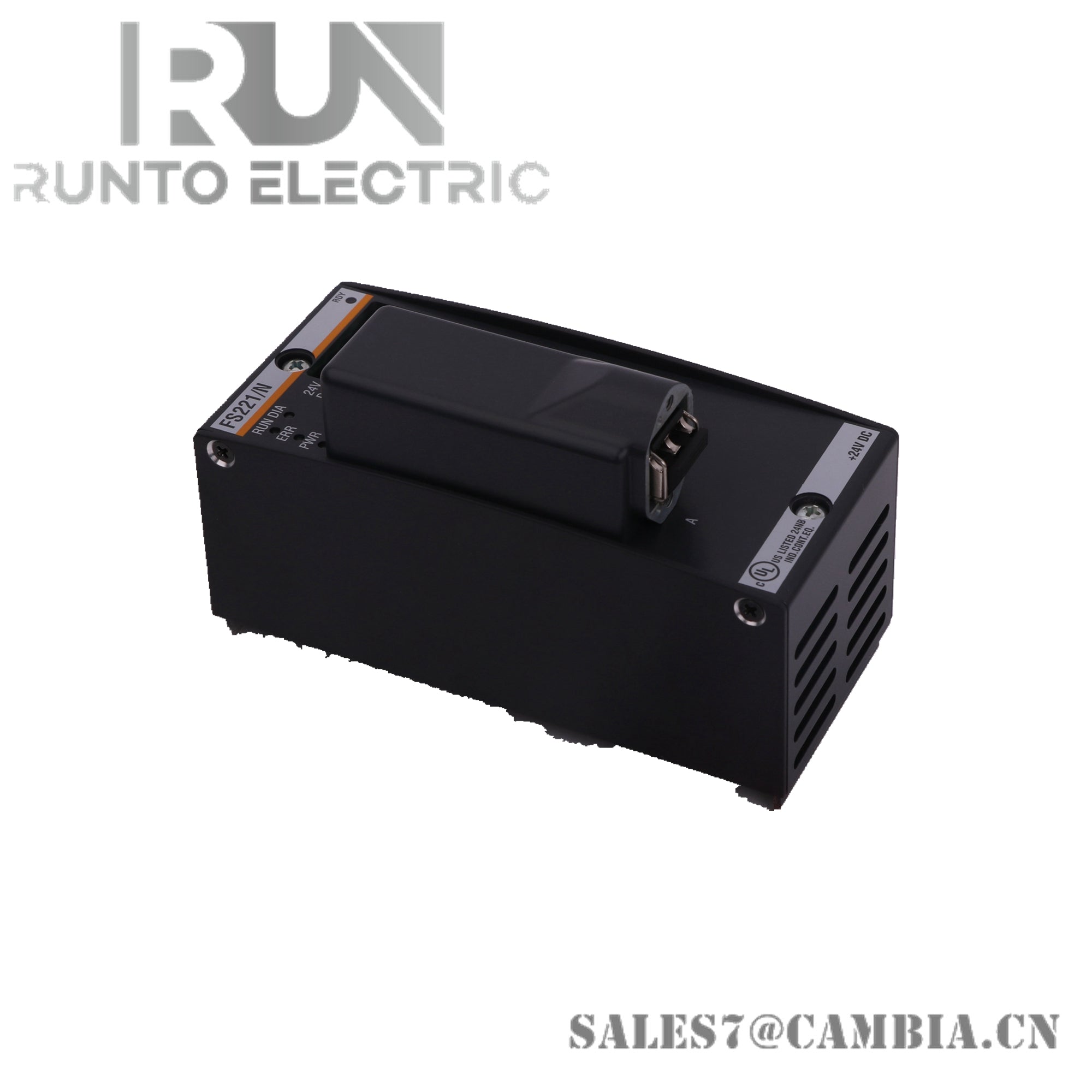

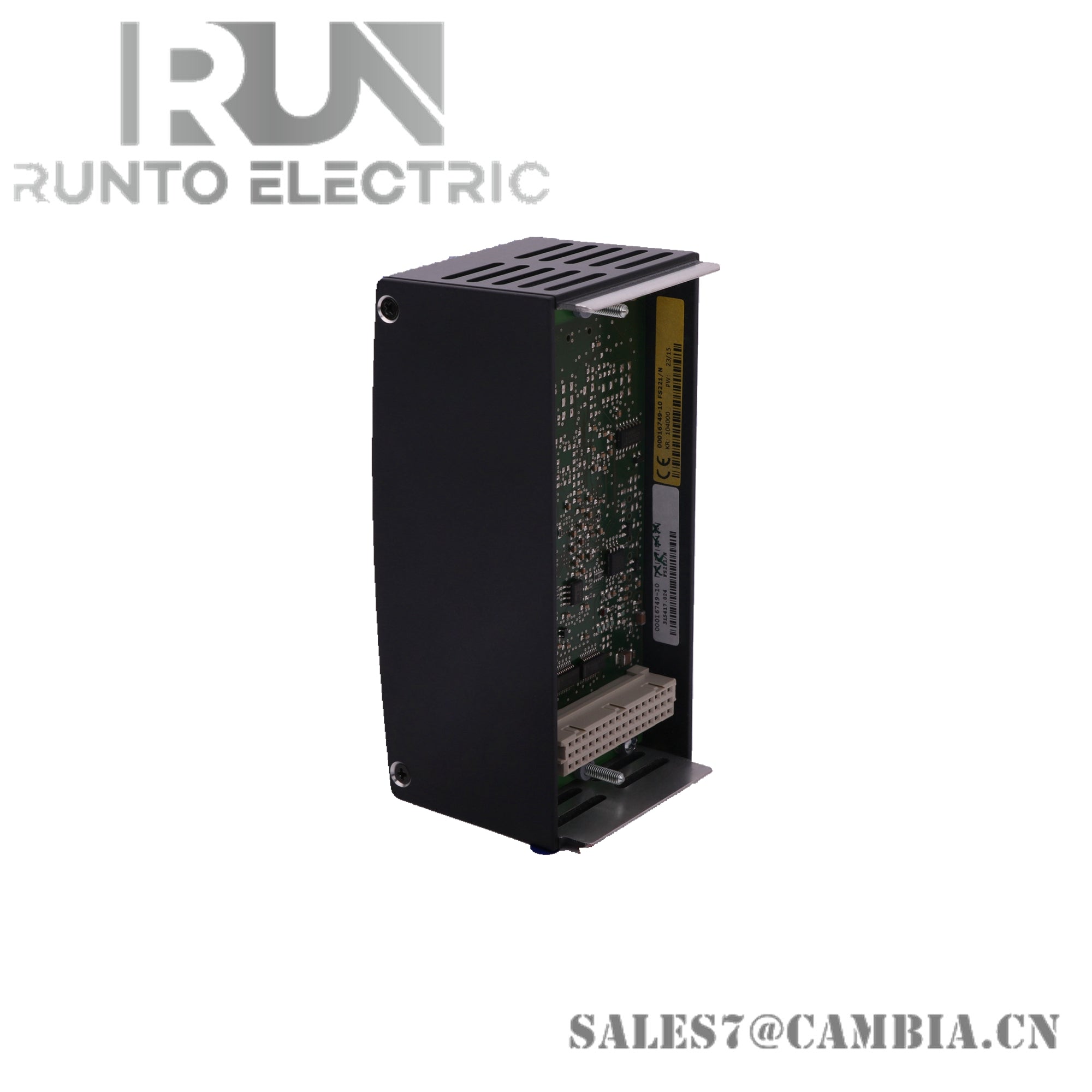

Bachmann FS221/N FASTBUS Slave Module

Description:

The FS221/N module is an integral component of the FASTBUS system, designed to distribute substations over long distances with minimal signal delay. It provides a power supply to support I/O modules in substations, ensuring smooth operation in demanding industrial environments.

Specifications:

• Input Voltage: 24 V DC (with a range of 18 to 34 V)
• Output Power Supply: 18.25 W
• Output Current:
  • +5 V: 3000 mA
  • +15 V: 250 mA
  • -15 V: 200 mA
• Transmission Medium: Multimode fiber (50/125 μm and 62.5/125 μm)
• Maximum Distance: Up to 2000 m via multimode fiber cable
• Operating Temperature: -30°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity (Operation): 5% to 95% without condensation
• Relative Humidity (Storage): 5% to 95% with condensation
• Pollution Degree: 2 (according to IEC 60664-1)
