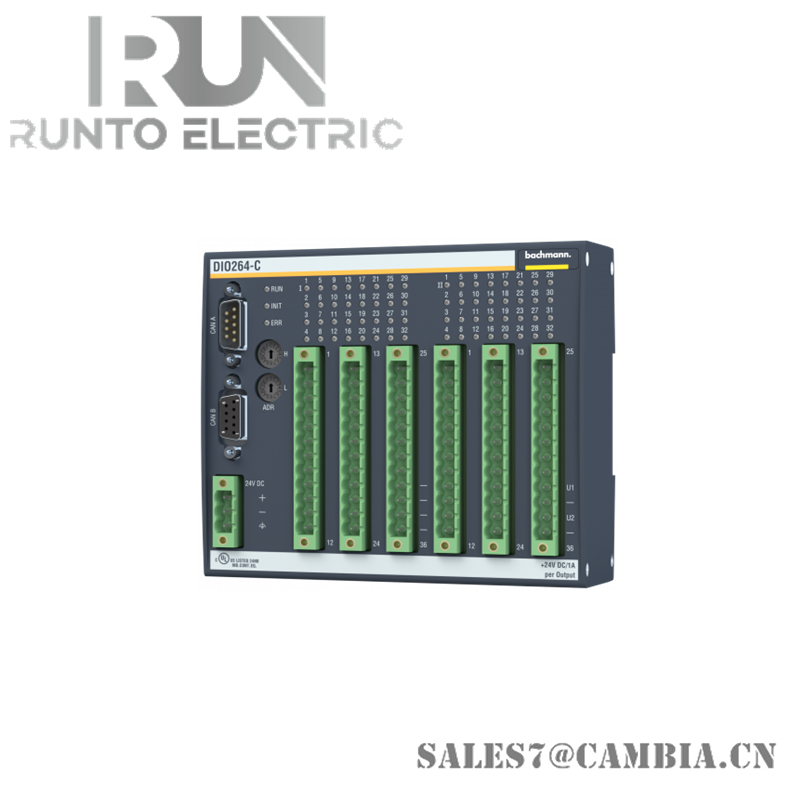

Bachmann DIO264-C CAN Slave Digital Input/Output Module

Description:

The Digital Input/Output Module is a versatile stand-alone CAN slave module designed to handle digital input and output tasks. It supports configurations with 16, 32, or 64 digital channels, which can be individually configured as either inputs or outputs. This module is suitable for various industrial applications, providing robust performance with options for event counting, frequency measurement, and energy-saving operations.

Specifications:

• Type: Digital Input/Output Module
• Configuration: Stand-alone CAN slave module
• Channels: 16 channels, configurable as input or output
• Current: Digital outputs with 1 A continuous current
• Interfaces: Two internally connected CAN interfaces for loop-through of the cable
• Isolation: Galvanic isolation between CAN interfaces and control electronics
• Baud Rate and Node ID: Set via rotary switch
• Supply Voltage: 18 to 34 VDC
• Operating Range: 0 to +60°C without additional cooling
• Mounting: Snappable on EN 50022 backplanes

Features:

• Interrupt Inputs: Configurable interrupt inputs for various applications
• Counters: Configurable 32-bit counter for event counting, incremental encoder, gate measurement, cycle time, or frequency measurement
• PWM Output Mode: For energy-saving operation of inductive loads like valves
• Status Display: LED status display for each channel, providing visual feedback on the status of each input/output
