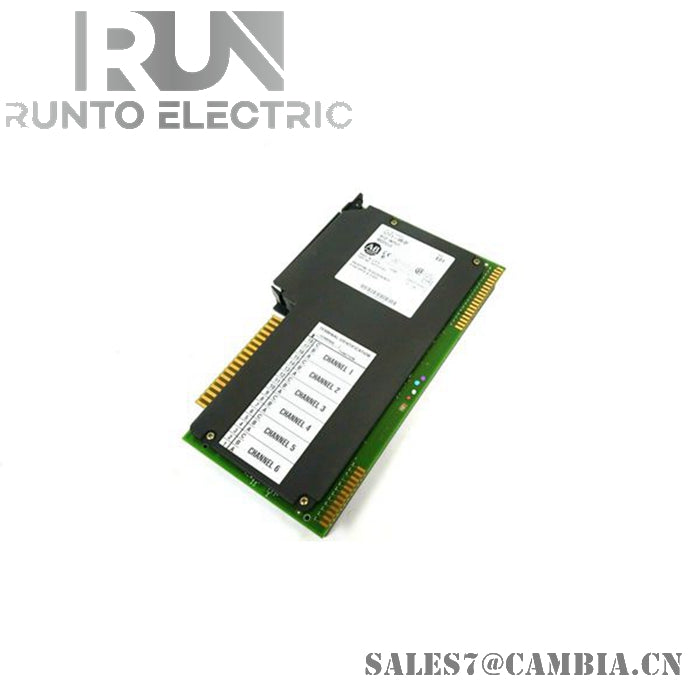

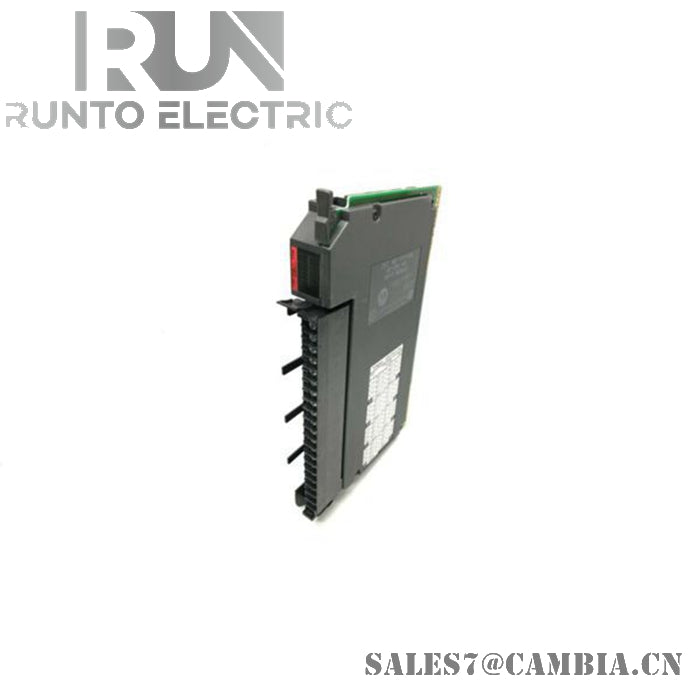

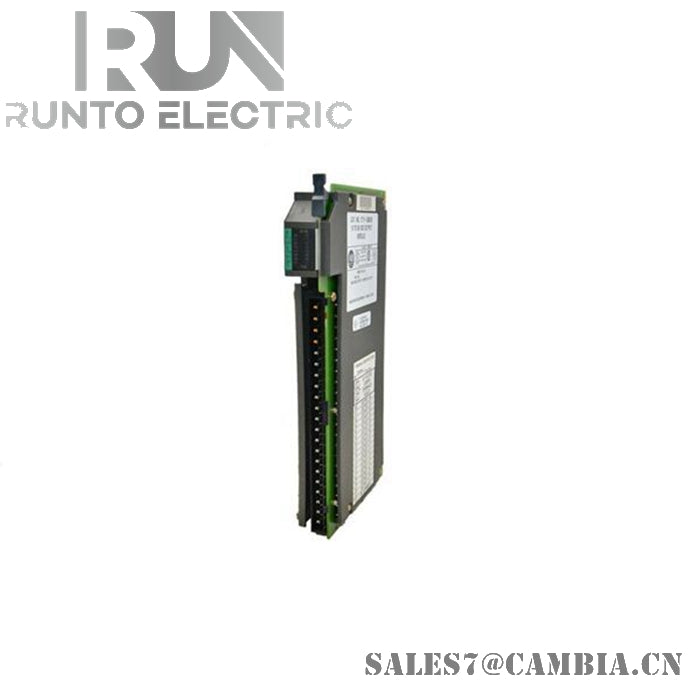

Allen Bradley 1771-IBD 16 Point Digital Input Module.

Key Features and Specifications:

• Manufacturer：Rockwell
• Inputs per Module: 16
• Module Location: All 1771 I/O chassis except 1771-A1, -A2
• Input Voltage Range: 10 to 30V dc
• Minimum Input Current: 4.5mA at 10V dc; 15mA at 30V dc
• Minimum Off-state Current: 2.0mA @ 5V dc
• Maximum Off-state Voltage: 5V dc
• Minimum On-state Voltage: 10V dc
• Input Impedance: 2.2K ohms maximum
• Input Signal Delay:
  • Low to high propagation delay: 6ms (+2ms)
  • High to low propagation delay: 20ms (+1ms)
• Power Dissipation:
  • Maximum: 5.9 Watts
  • Minimum: 1.3 Watts
• Thermal Dissipation:
  • Maximum: 19.9 BTU/hr
  • Minimum: 4.3 BTU/hr
• Backplane Current: 250mA @ 5V dc +5%
• Isolation Voltage: 1500V ac rms
• Environmental Conditions:
  • Operational Temperature: 0°C to 60°C (32°F to 140°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Relative Humidity: 5% to 95% (without condensation)

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone inquires from us, please click sales7@cambia.cn.
