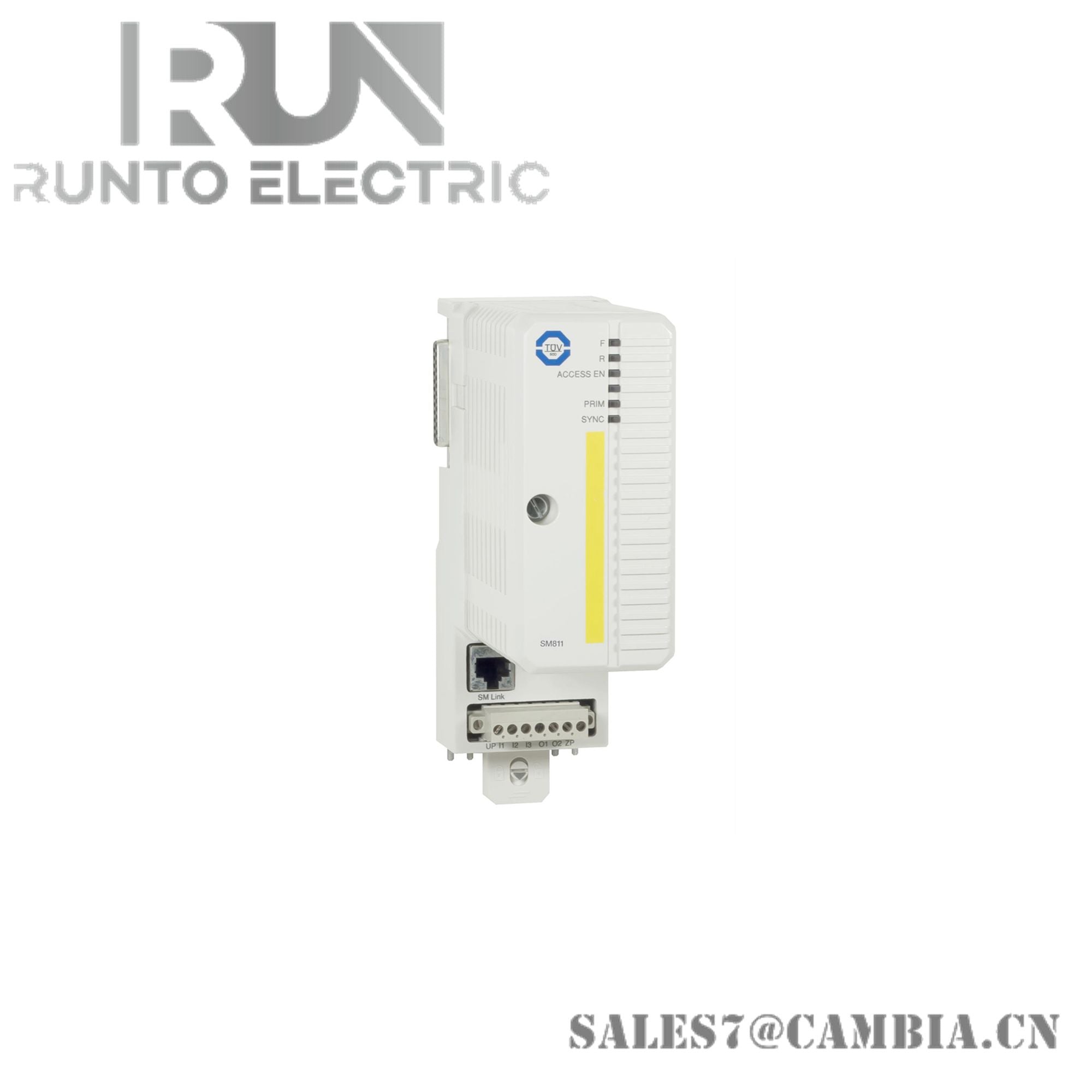

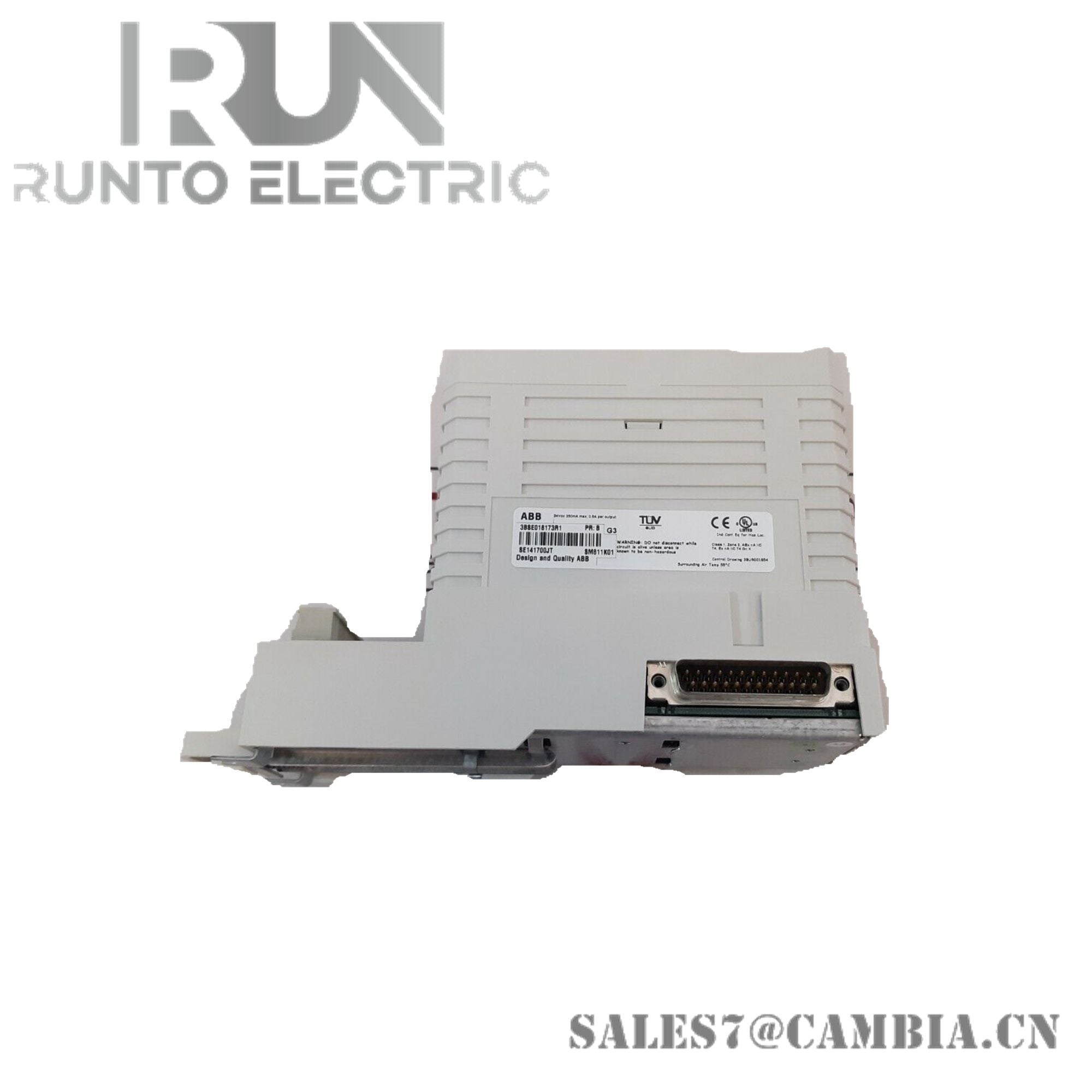

ABB SM811K01 3BSE018173R1 Safety CPU Module

General Information

• Product ID: 3BSE018173R1

• ABB Type Designation: SM811K01

• Catalog Description: SM811K01 Safety CPU Module

• Long Description: This high-integrity Safety CPU module is certified for SIL3.

Additional Information:

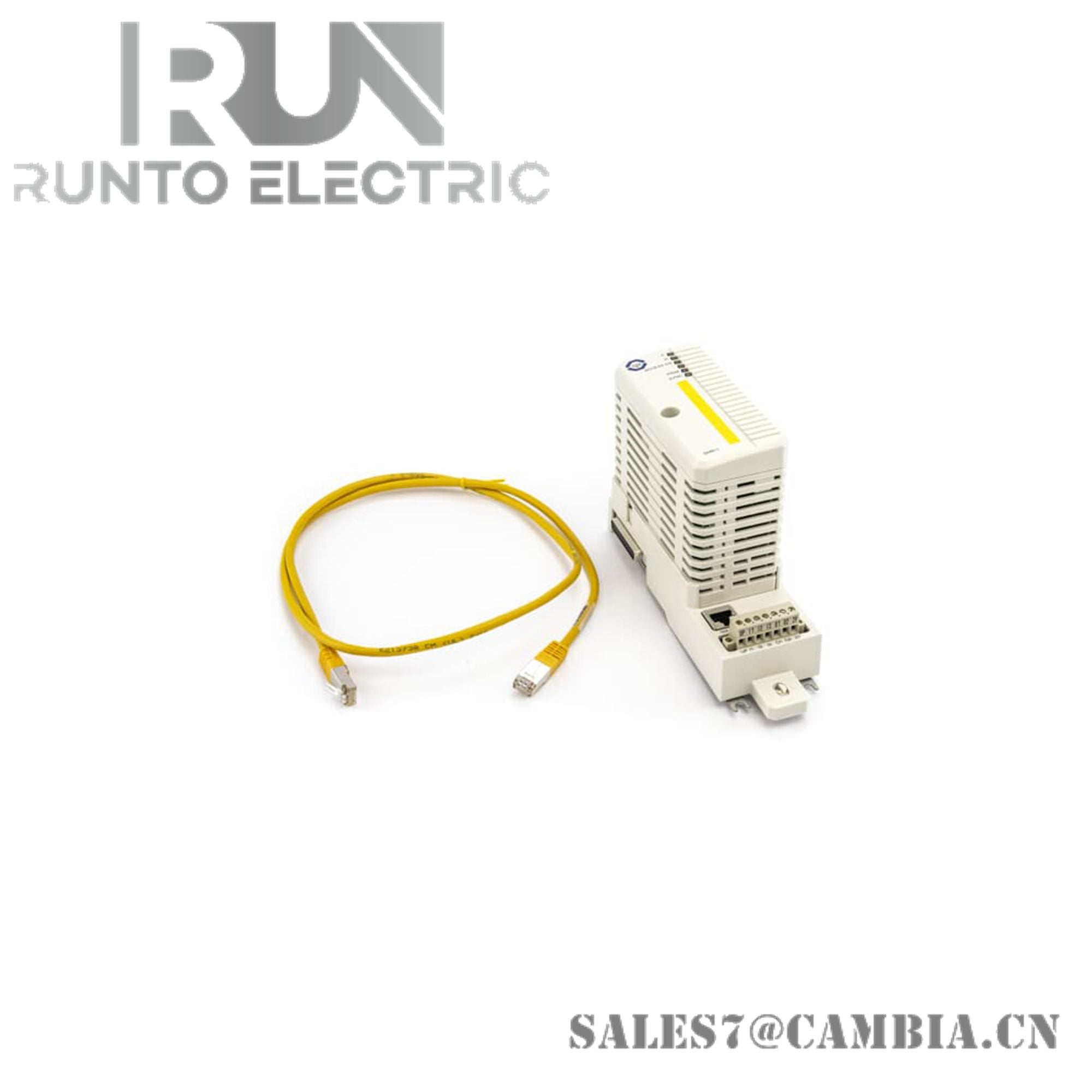

• Medium Description: High integrity, certified for SIL3. Requires configuration according to the Safety Manual. Collaborates with the PM865 and connects to the CEX bus after the BC810 CEX bus interconnection box. Includes SM811 Safety Module, TP868 Baseplate, and TK852V10 Synchronization Link Cable.
• Product Type: Central Unit

Dimensions:

• Product Net Depth / Length: 127.5 mm
• Product Net Height: 185 mm
• Product Net Width: 59 mm
• Product Net Weight: 0.6 kg

Environmental:

• RoHS Status: Not RoHS Compliant
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
• Number of Batteries: 0
• SCIP: f8e94e64-57db-4c21-8b39-3ca5932c608a Sweden (SE)
