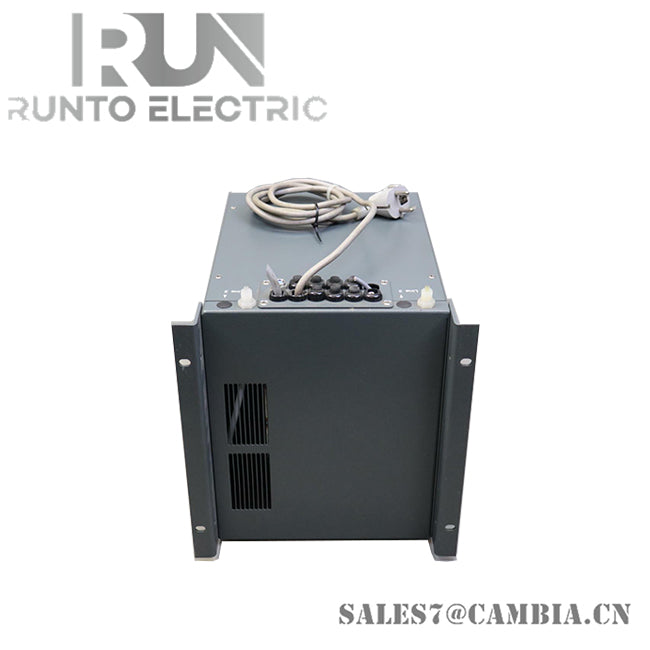

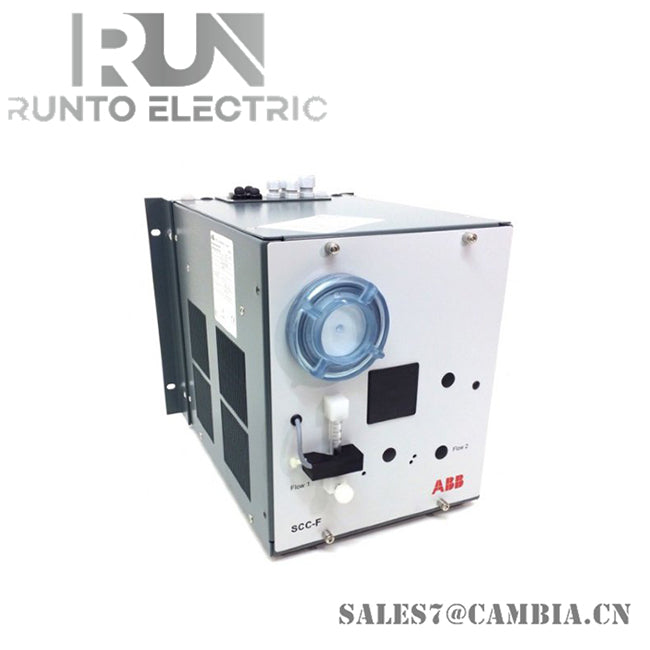

ABB SCC-F 23212-0-110310 Sample Sas Feed Unit

Description

The SCC-F Gas Feed Unit is designed to transport sample gas to the analyzer while managing flow and condensate in two independent gas paths. It integrates status and alarm signals from the sample handling system into the controller board of Advance Optima analyzers.

Specifications

• Flow Rate: 10 to 100 l/h, controlled by a needle valve (metal-free)
• Dimensions: Compact size (1/2-19", 6 HU, 302 mm)
• Mounting: Surface mounting with brackets for 19" plug-in units or wall mounting
• Gas Paths: Two independent gas paths, optional sample pump
• Communication: Digital communication port for integration with the controller board

Features

• Flow and Condensate Control: Integrated switching amplifier to manage flow and condensate.
• Service-Friendly Design: Easy access to modules for straightforward maintenance.
• Versatile Applications: Ideal for continuous dosed feeding of sample gas in various industrial environments.
• Dimensions: 35x11.7x3cm
• Weight: 0.38 kg
