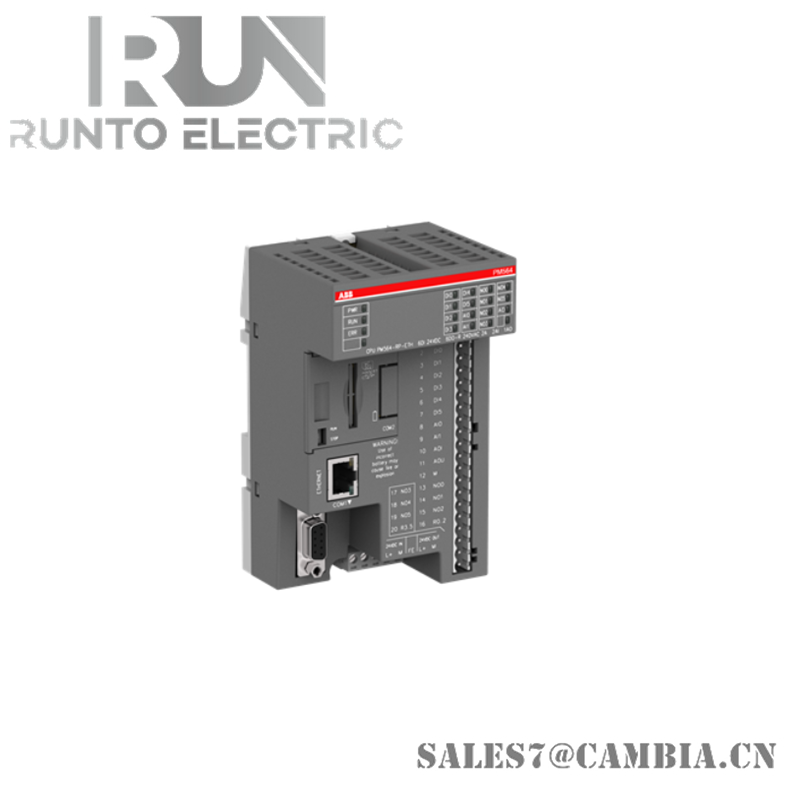

ABB PM564-R-AC 1TNE968900R1220 AC500 Programmable Logic Controller

General Information

• Product Type: PM564-R-AC
• Product ID: 1TNE968900R1220
• ABB Type Designation: PM564-R-AC
• EAN: 6943747170398
• Catalog Description: PM564-R-AC: AC500, Programmable Logic Controller
• Long Description: AC500 Programmable Logic Controller, 128 kB memory, 6 DI, 6 DO-R, 2 AI, 1 AO, 1x RS485, 2x Option Slots, 100-240 VAC

Dimensions

• Net Weight: 0.4 kg
• Dimensions:
  • Depth / Length: 135 mm
  • Height: 74 mm
  • Width: 82 mm
• Gross Weight: 0.5 kg

Technical Specifications

• Communication Interface: Serial
• Memory Size for User Program: 128 kB
• Memory Size for User Data: 10 kB
• Memory Type for User Data: Flash EPROM
• Output Voltage (Uout): 24 ... 230 V
• Output Current: 2 A
• Degree of Protection: IP20
• Ambient Air Temperature:
  • Operation: 0 ... +60 °C
  • Storage: -40 ... +70 °C

Additional Information

• Product Main Type: PM564
• Product Name: Distributed Automation PLCs

Environmental Information

• WEEE B2C/B2B: Business To Business
• WEEE Category: 5 (Small Equipment, No External Dimension More Than 50 cm)
