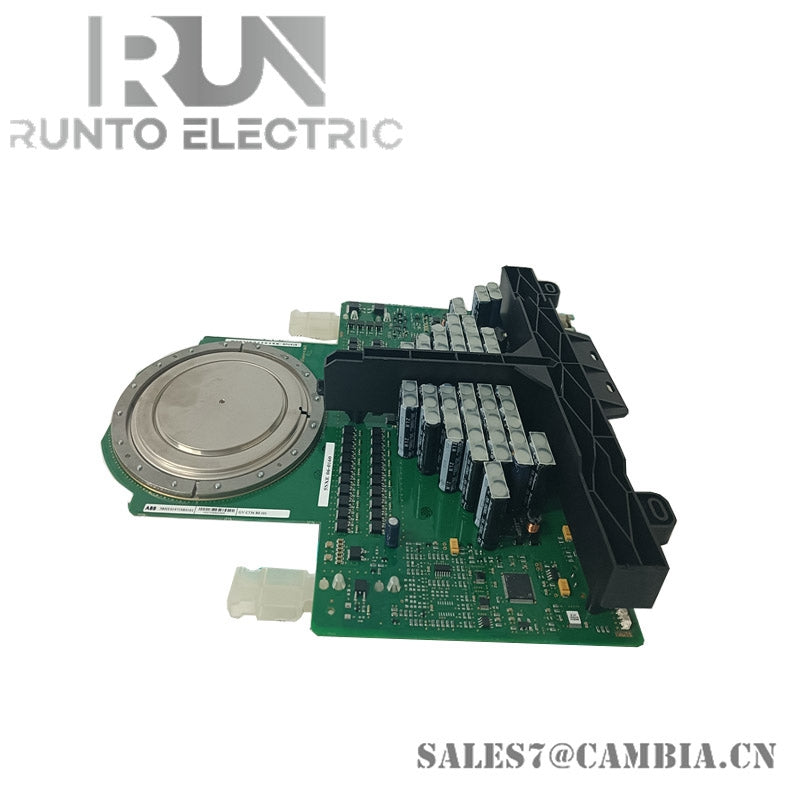

ABB 3BHE023784R0001 5SHY 3545L0014 IGCT Module

Description:

• Product ID: 3BHE023784R0001
• Type Designation: 5SHY 3545L0014
• Catalog Description: IGCT Module, 4500V, 91MM
• Long Description: The 5SHY 3545L0014 is a high-power semiconductor device that combines the benefits of both thyristors and transistors. It is engineered for high-voltage and high-current applications, delivering efficient and reliable performance in demanding environments.

Features:

• Voltage Rating: 4500V
• Diameter: 91 mm
• High Reliability: Integrates the stable turn-off capability of transistors with the low on-state losses characteristic of thyristors.
• Integrated Design: Features a GTO chip, anti-parallel diode, and gate drive circuit within a low-inductance package.
• Applications: Ideal for use in industrial drives, traction systems, and power transmission systems.
