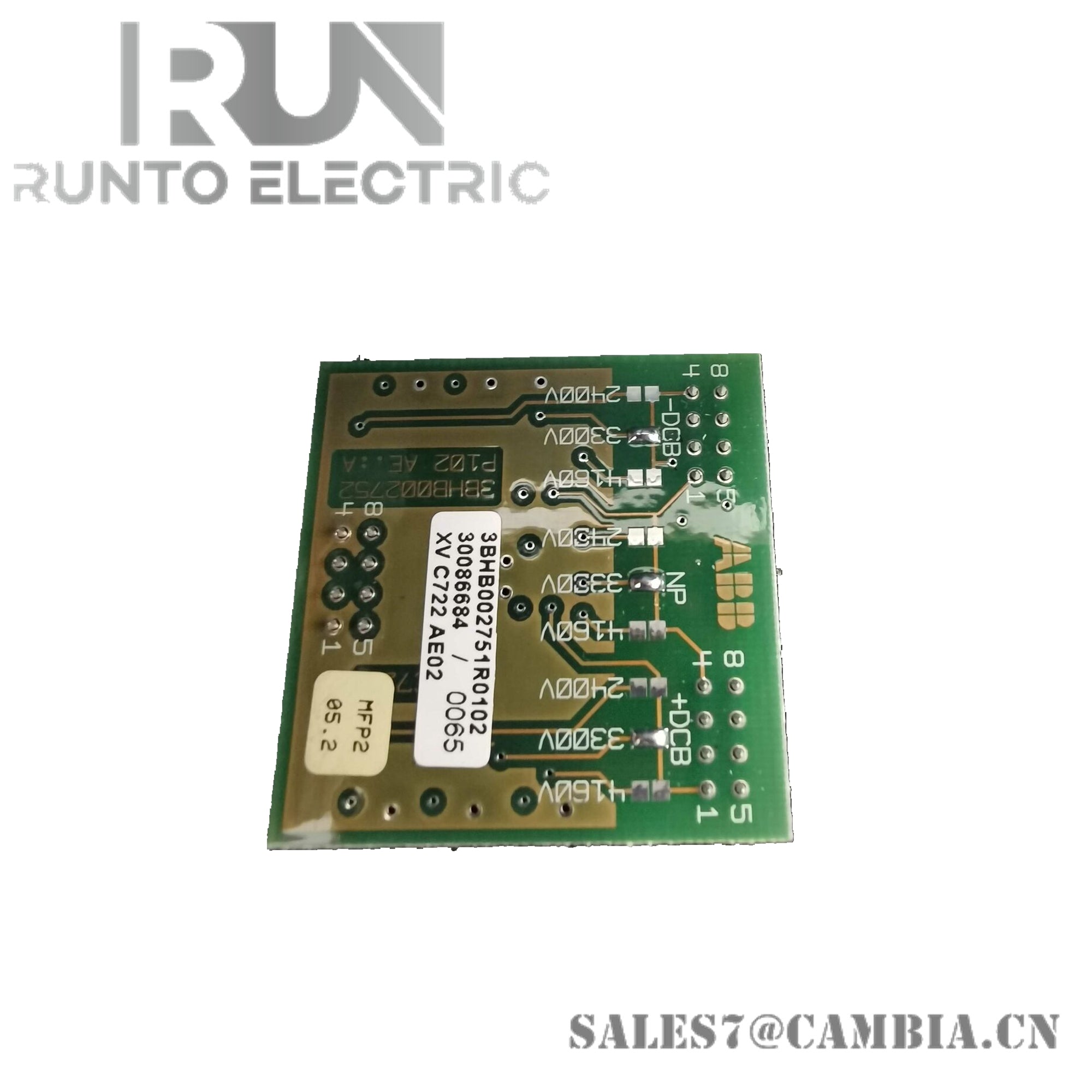

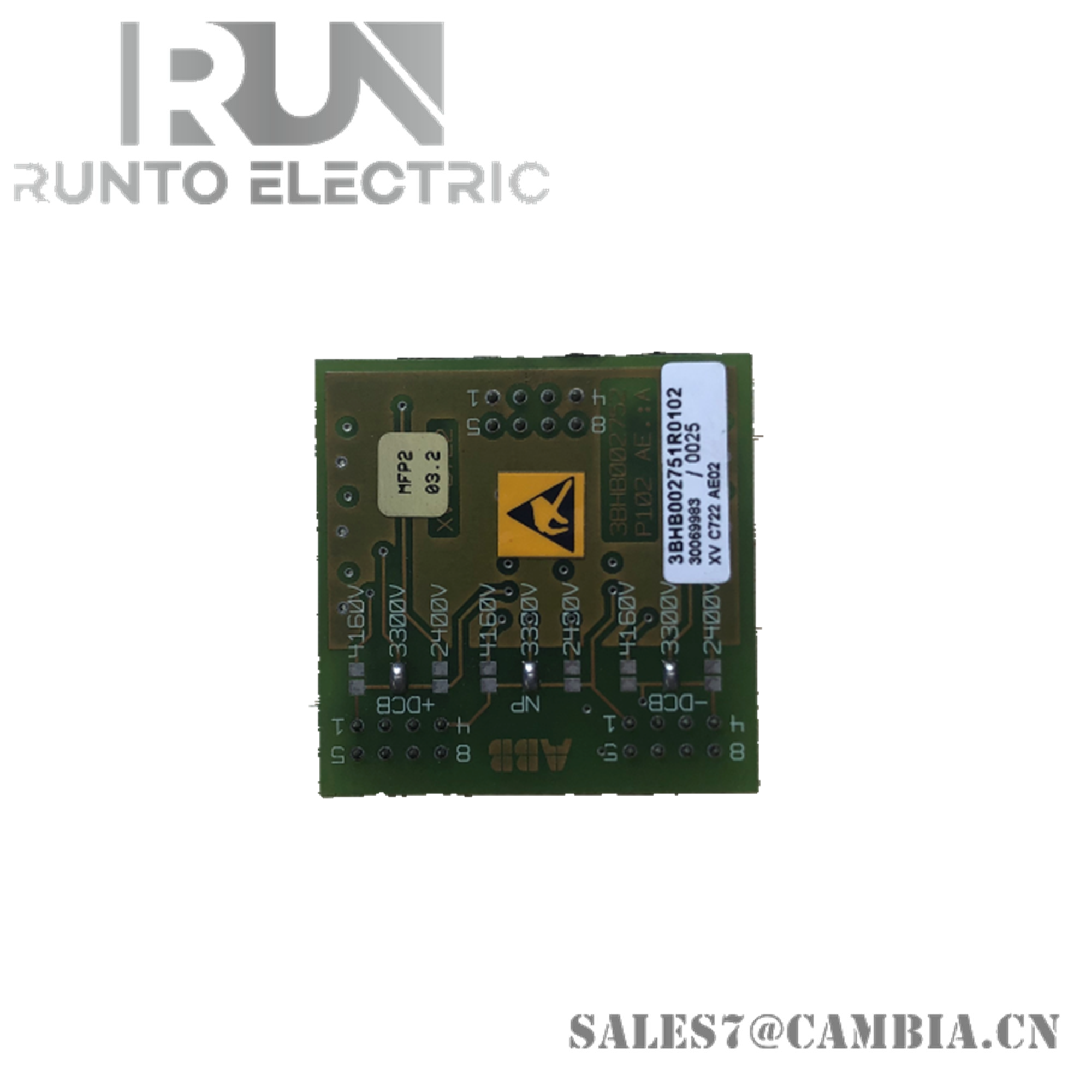

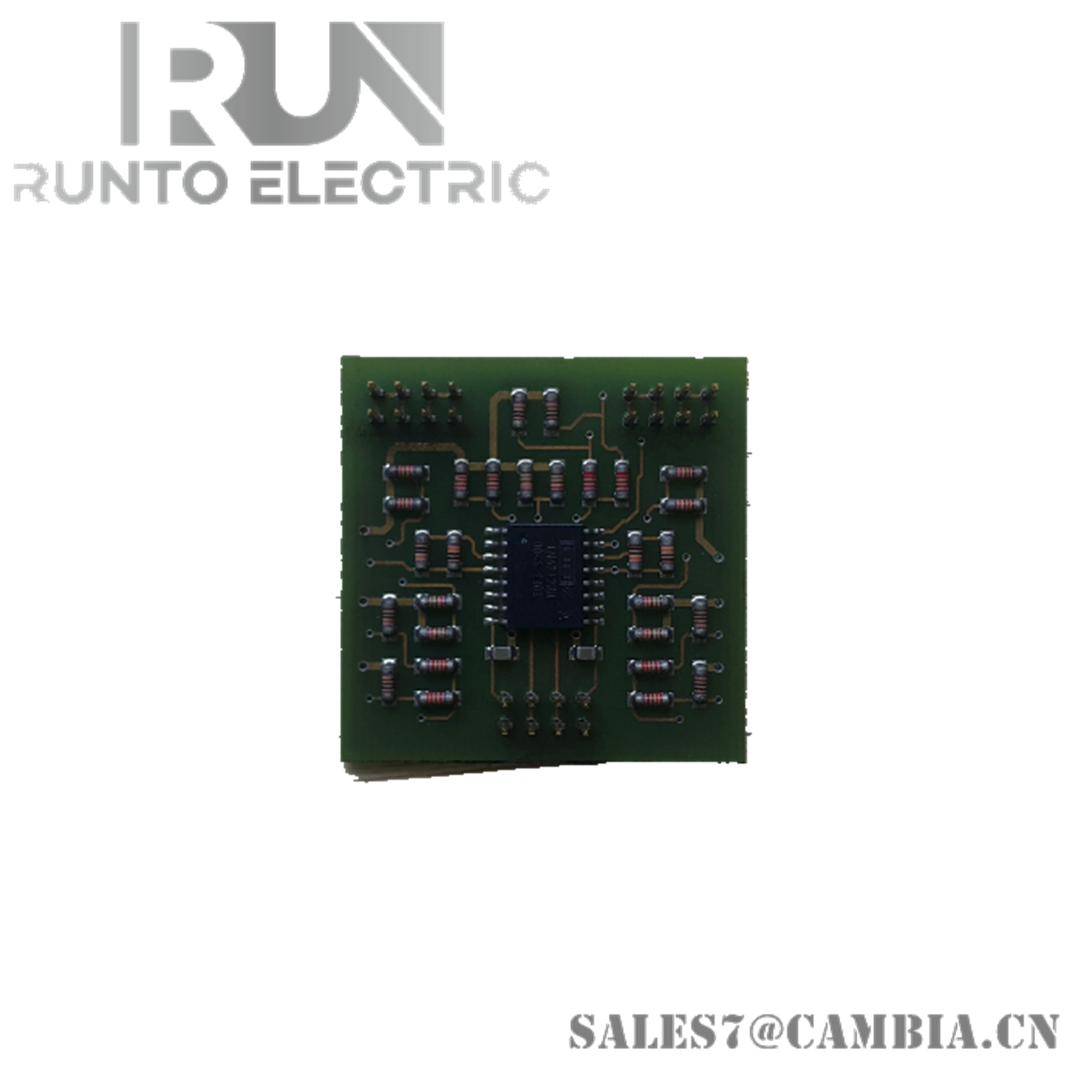

ABB 3BHB002751R0106 Rectifier Supervision Board

Description:

The ABB 3BHB002751R0106 module is designed to monitor and control the rectifier section of the drive system, ensuring efficient conversion of AC power to DC for the inverter stage. This module plays a crucial role in maintaining the performance and reliability of the overall drive system.

Specifications

• Input Voltage Range: 85-264 VAC
• Output Voltage Range: 5-24 VDC
• Output Current Range: 0-10 A
• Maximum Power Output: 240 W
• Operating Temperature Range: -10 to 60°C
• Storage Temperature Range: -40 to 85°C
• Humidity: 5% to 95% non-condensing

Features

• Rectifier Monitoring: Monitors rectifier voltage, current, and temperature.
• Cooling Fan Control: Manages rectifier cooling fans for optimal performance.
• Fault Indication and Protection: Provides mechanisms for fault indication and protection.
• Communication: Effectively communicates with the drive controller.
• High Reliability: Ensures dependable operation in industrial environments.
• Modular Design: Facilitates easy integration and maintenance.
