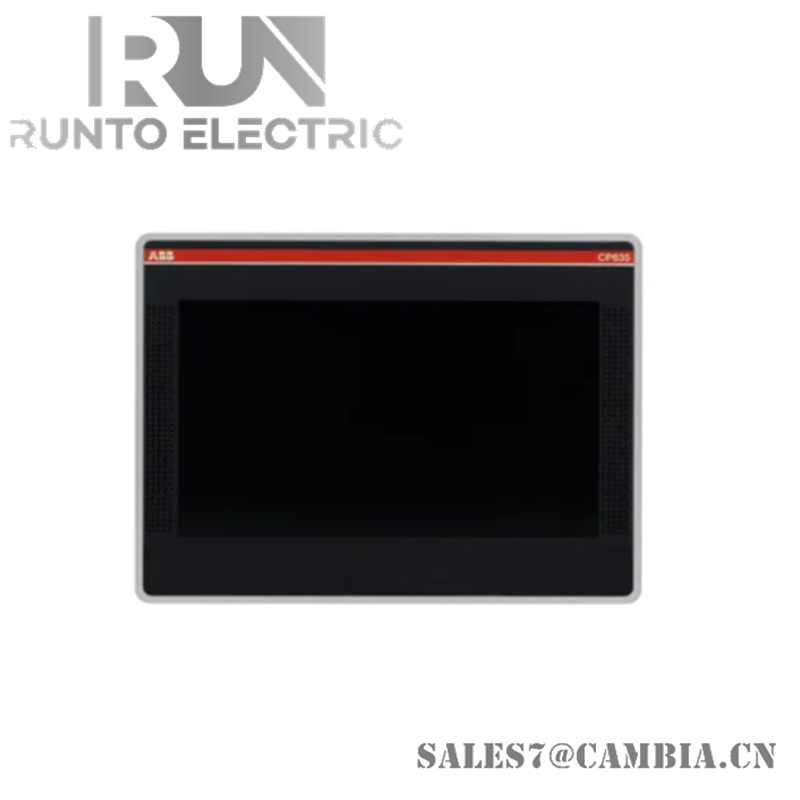

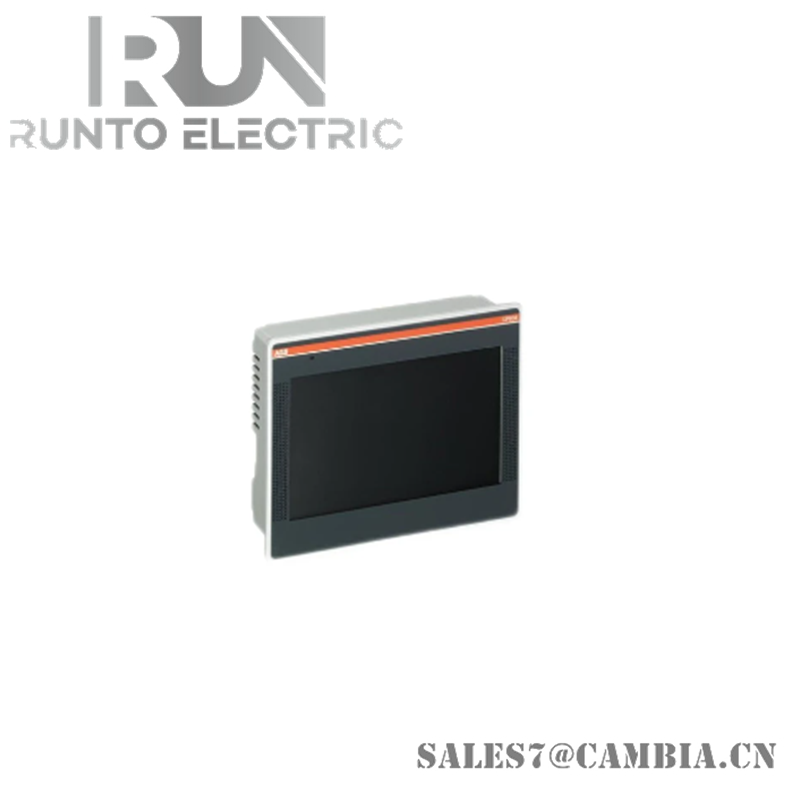

ABB 1SAP535100R0001 CP635 Control Panel Touch Ccreen

General Information:

• Extended Product Type: CP635
• Product ID: 1SAP535100R0001
• ABB Type Designation: CP635

Classifications and Technical Specifications:

• Ambient Air Temperature:
  • Operation: 0 ... +50 °C
  • Storage: -20 ... +70 °C
• CN8: 85371091
• Communication Interface:
  • 2x Ethernet 100 MBit
  • 1x RS232/422/485
  • 2x USB 2.0 Host
  • 1x SD card slot
  • 2x Expansion slot
• Country of Origin: Italy (IT), Germany (DE), Finland (FI)
• Customs Tariff Number: 85371091
• Declaration of Conformity - C-Tick: 1SAA960002-3301
• Declaration of Conformity - KCC: 1SAA960002-4801
• Degree of Protection:
  • Front: IP66 (according to IEC 60529)
  • Housing: IP20 (according to IEC 60529)
• EPLAN Data Portal Status: Available but Not EDS Compliant
• Frame Size: Undefined
• Gross Weight: 1.2 kg
• Housing Material:
  • Front Side: Zamak
  • Reverse Side: Aluminium
• Invoice Description: CP635 Control Panel 7" TFT touch screen
• Product Type: PLC-CP600
• Programming Software: PB610 Panel Builder 600
• Quote Only: No
• Real-time Clock: Hardware clock, battery back-up
• SCIP: 5b70c5e1-98a2-4f22-9ad2-d8445ecf8732 Germany (DE)
• Screen Color: 64k colors
• Screen Resolution: 800 x 480 pixels
• Screen Size: 7 inches, 16:9 wide screen
• Screen Type: TFT color, LED backlight, touch screen
• Security: Password protection with 8 user levels
• Selling Unit of Measure: piece
• Serial Port 1 Type: RS232/RS422/RS485
• Service Life: 40,000 hours
• Short Description: CP635 Control Panel 7" TFT touch screen
• Stocked At (Warehouses): Menden, Germany; Singapore, Singapore; Hangzhou, China; Bairro Santo Antonio, Brazil
• UNSPSC: 32151703
• USB Port 1 Type: Host, version 2.0
• USB Port 2 Type: Host, version 2.0
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
