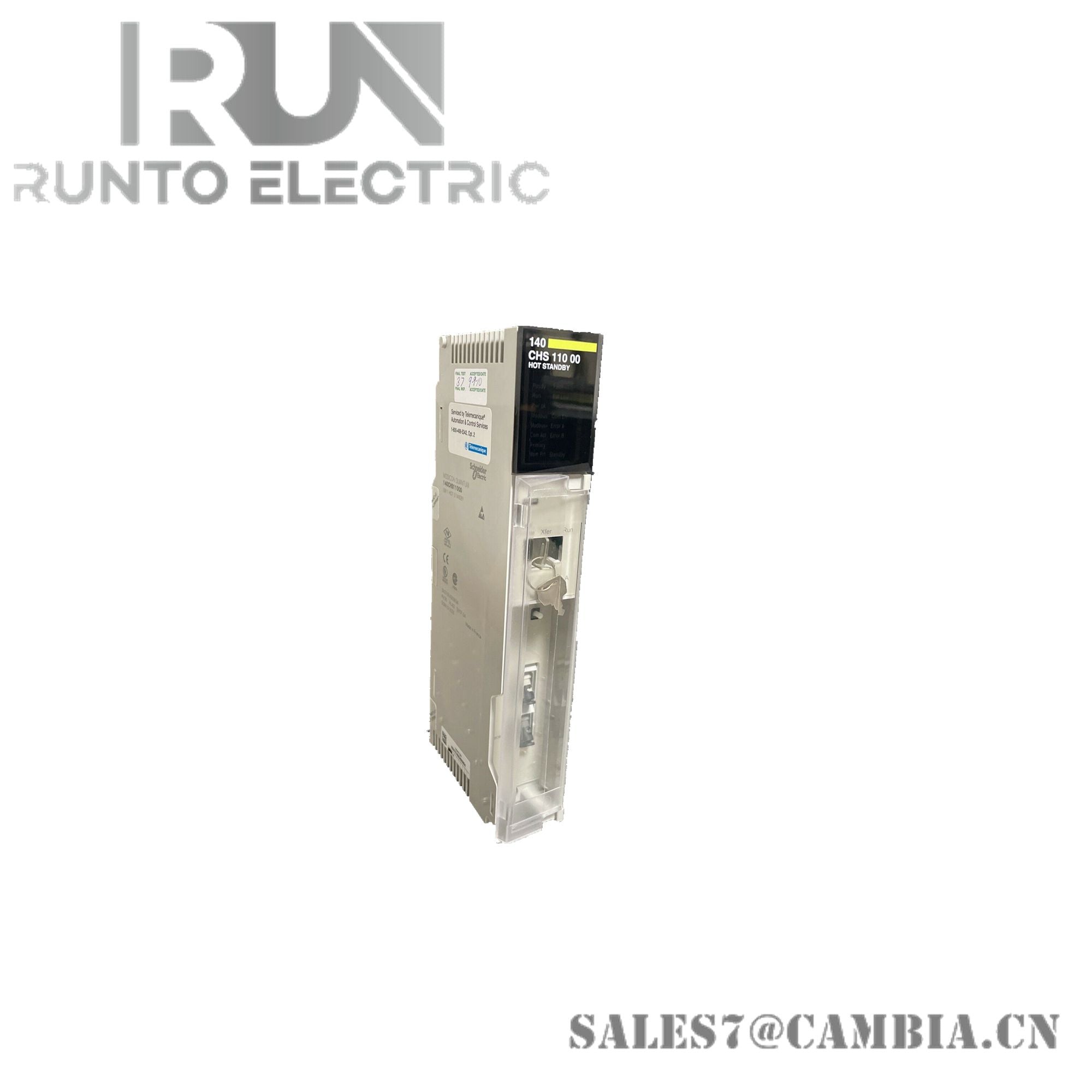

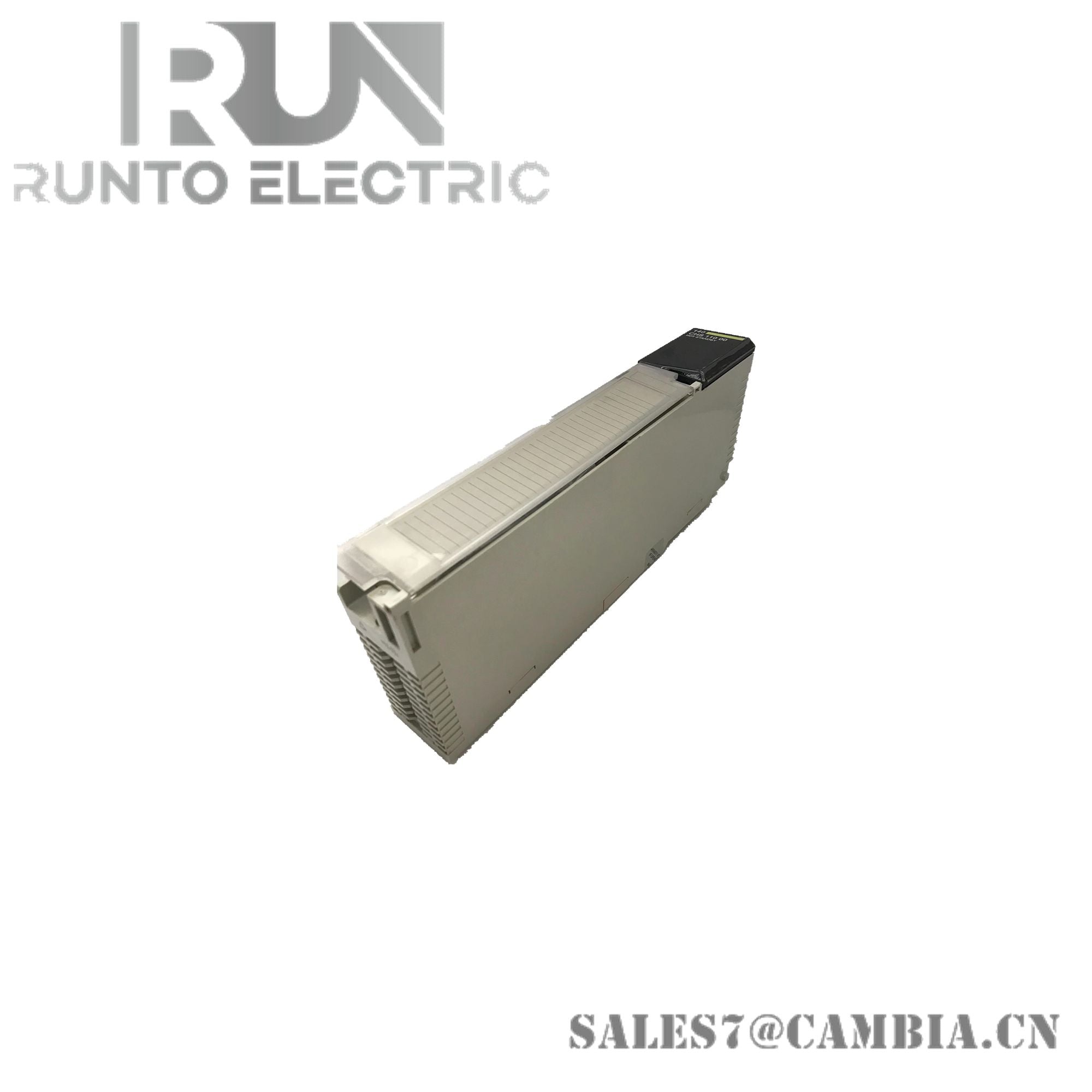

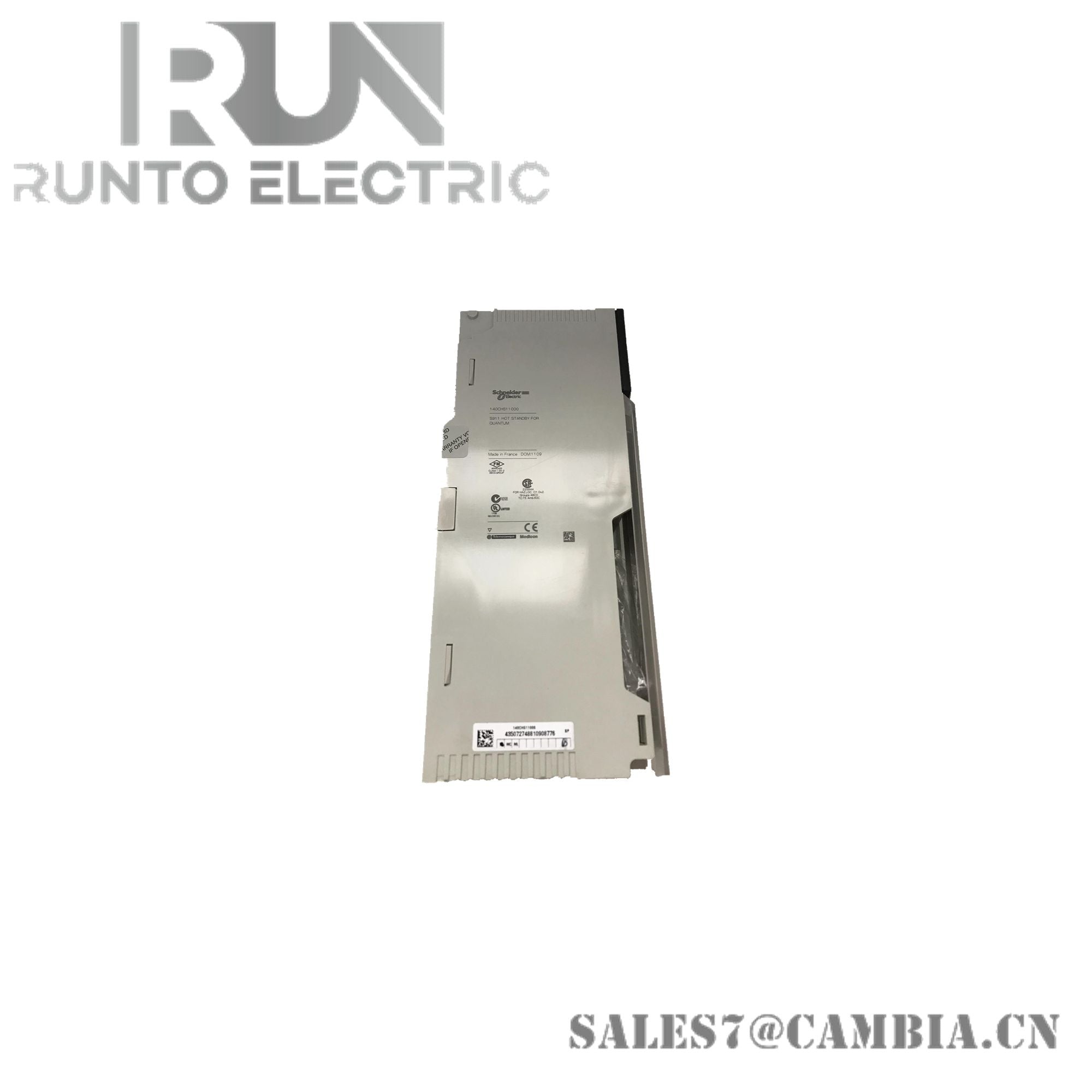

140CHS11000 | Scheinder Electric | Hot Standby Module

Main:

• Range of Product: Modicon Quantum Automation Platform
• Product or Component Type: Hot Standby Module
• Software Designation:
  • Concept version ≥ V2.0
  • ProWORX 32 NxT version V2.0

Complementary:

• Product Compatibility:
  • All legacy 140CPU with LL984 language
  • All 140CPU43412A/534 with IEC language
• Input/Output Type:
  • 800 Series
  • Sy/Max (remote I/O only)
  • Quantum
• Transmission Rate: 10 Mbit/s
• Transmission Support Medium: Fiber optic (3 m)
• Switching Time: 13...48 ms
• Electrical Connection:
  • 1 connector RJ45 for fiber optic receiver
  • 1 connector RJ45 for fiber optic transmitter
• Local Signaling:
  • 1 LED (amber) for module in standby
  • 1 LED (green) for communication with I/O module
  • 1 LED (green) for control process
  • 1 LED (green) for ready module
  • 1 LED (red) for communication error
• Bus Current Requirement: 700 mA
• Module Format: Standard
• Net Weight: 1.06 kg

Environment:

• RFI Immunity: 27…1000 MHz, 10 V/m (conforming to IEC 60801-3)
• Resistance to Electrostatic Discharge:
  • 4 kV (contact)
  • 8 kV (air)
• Ambient Air Temperature for Operation: 0…60 °C
• Ambient Air Temperature for Storage: -40…85 °C
• Relative Humidity: 95% (without condensation)
• Operating Altitude: ≤ 5000 m
